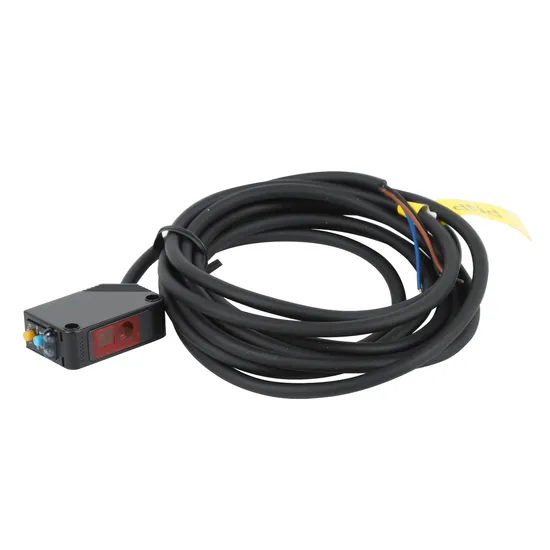

Advanced Fcb-S200p Laser Sensor with 2m Detection Range

Product Description

Product Description
F&C Advanced Fcb-S200p Laser Sensor with 2m Detection Range
(1) Proximity sensor 1000+ models(2) Fiber amplifier and Optic Sensor 3000+ models(3) Photoelectric Sensor 500+ models(4) Magnetic Switch 100+ models
(5) Lable sensors 40+ models

Basic parameters
Detection distance	0.05-1m @5% Reflectivity 0.05-2m @30% Reflectivity
Ranging frequency	1000Hz
Weight	45g
Power consumption	<0.6W
Indicator light	Operation indication (orange), stability/communication indication (green)
Absolute accuracy	±40mm
Repeat accuracy	±5mm
Output form	PNP/NPN/TTLSerial port (customizable)
Output action	NO/NC Switchable, the switching method is the length of time the key is pressed
Output mode	Instant/delayed response mode, switching method is based on the length of time the key is pressed
Maximum load current	100mA
Maximum load voltage	30V DC
Residual voltage	<1V
Light source
Light source	Red laser diode
Beam type	Red visible spot laser
Wavelength	650nm
Laser class	Class 2

Electrical parameters
Working voltage		9~30V DC
Response time		1ms(50ms ,Can be set)
Protection circuit		Power supply reverse connection protection, output short circuit protection, output reverse connection protection
EMC protection		ESD protection, EFT protection, 500V surge protection
Environmental conditions
Protective structure		ICE standard IP64
Ambient light resistance		>3000Lux
Working environment temperature		-20ºC~+55ºC
Storage environment temperature		-40ºC~+70ºC
Mechanical parameters
Length		Length
Width		Width
Height		Height
Type		Type
Material Housing Lens Cable	Material Housing	PC+ABS
	Lens	PMMA
	Cable	0.2mm 3core PVCcable ,2m(Customize)

Detailed Photos
Application
F&C products family
About us
23+ years manufacture and 10+ years OEM service sensor experience. 4000+ models Sensors Long service time, 8+ years Fast delivery time. Most delivery within 1 days (Stocks) IP67 protection grade CE, RoHS certification

---
