US$77,950.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Certification
ISO9001: 2000
Crawl Excavator Bucket Capacity
1cbm
Crawl Excavator Operating Weight
21.5ton
Crawl Excavator Hydraulic Parts
Kawasaki
Specification
ISO Standard
Production Capacity
2000 Units/Year
Product Description
Introduction of excavator, crawl excavator operating weight from 5.85ton to 76 ton, bucket capacity from 0.2 m3 to 4.0 m3
Crawl excavator Main Features:
Crawl excavator Main valve:
Inline valve with boom and Arm anti-drop function, boom and arm cylinders with regeneration function to enhance the speed and save the energy
Crawl Excavator Main pump:
Japanese Inline hydraulic pump is more reliable and durable
Crawl Excavator Hydraulic motors:
Inline swing motor and Eddie travel motor, compact structure integrates reducer, buffer valve and anti-reverse valve
More Durable Boom and Arm, undercarriage, easy maintenance
Full sealed, ROPS/FOPS cabin with A/C, luxury seat, colorful LCD monitor, damper can reduce vibration and noise
Excavator specifications
MODEL | TM215.8 |
Operating weight (T) | 21.5 |
Bucket capacity (m3) | 1.0 |
Engine model | Misubishi 4M50 |
Rated power (kw/r/min) | 118/2000 |
Volume of fuel tank (L) | 420 |
Travel speed (km/h) | 5.2/3.5 |
Swing speed(r/min) | 11.5 |
Max climbing degree° | 70 |
Bucket digging force at power max (KN) ISO | 157 |
Average grounding pressure(KPA) | 48 |
Hydraulic pump model | InLine V90N130 |
Maximum flow (L/min) | 222*2 |
Setting pressure (MPa) | 37.3 |
Volume of hydraulic tank (L) | 246 |
Overall length (mm) | 9560 |
Overall width (mm) | 2980 |
Overall height (to top of boom)(mm) | 3040 |
Overall height (to top of cab)(mm) | 3120 |
Counterweight ground clearance (mm) | 1065 |
Min. ground clearance (mm) | 466 |
Tail swing radius (mm) | 2720 |
Track grounding length (mm) | 3260 |
Track length (mm) | 4060 |
Track gauge(mm) | 2380 |
Track width (mm) | 2980 |
Track shoe width (mm) | 600 |
Turntable width (mm) | 2700 |
Max. digging height (mm) | 9275 |
Max. dumping height (mm) | 6560 |
Max. digging depth (mm) | 6515 |
Max. vertical wall digging depth (mm) | 5915 |
Max. digging depth for 2.5m horizontal plane (mm) | 6380 |
Max. digging reach (mm) | 9865 |
Max.digging reach at ground level (mm) | 9680 |
Min. swing radius (mm) | 3630 |
Max. height at min swing radius (mm) | 7670 |
Distance from swing center to rear (mm) | 2720 |
Height of counterweight (mm) | 2120 |
Grounding length (in transportation) (mm) | 4850 |
Arm length (mm) | 2900 |
Boom length (mm) | 5700 |
Excavator workshop:

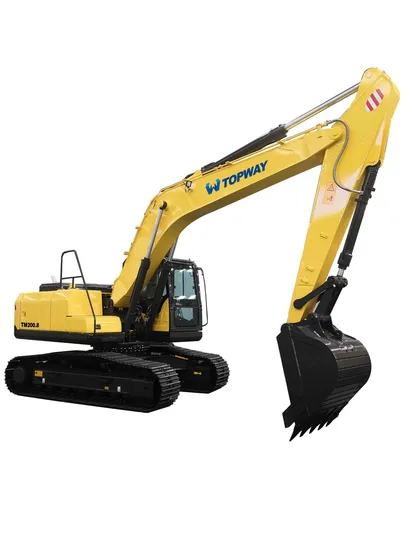

Excavator photo
Excavator in 40FR, RORO VESSEL and BULK VESSEL
Service:
We treat SERVICE as a significant segment in our value chain, from the moment you get in touch with TOPWAY, our commitment to service is a complete guarantee that we will make every effort to be there for you. That is our pledge to you. We wish to not just satisfy but surpass the expectations of our customers.
All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered. TOPWAY service will be always with you for maintain and development since your purchase. We keep in mind that never stop innovation, never stop improving, never stop adding extra value to our machines and service.
Parts Support:
Parts distribution centers of our company. At all levels provide you with original parts. we maintain an extensive spare parts inventory for all our equipment. This forms a one-stop-centre to serve our customers promptly and efficiently.
