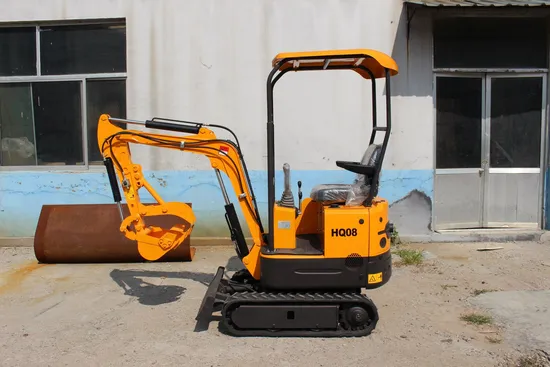

Haiqin Brand (HQ08) with Euro 5 Engine Mini Track Excavator

Product Description

1, Mini Excavator HQ08 Features:
This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
2, Mini Excavator HQ08 Specifications :

Model	HQ08
Operating Weight	880kg
Digging bucket capacity	0.025cbm/120kg
Digging bucket width	350mm, can add narrow bucket is 200mm
Engine	KOOP(KD192F) Or Euro 5 engine for option
Rated power	8.6kw/3600r/min
Displacement	0.211 L
Bore stroke	single cylinder, fan cool
Main pump	SAISIDA
Valve	BEIFANG
Displacement	6.8ml/r
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN (OMS-2450
MAIN DEMENSIONS
Overall dimension( LxWxH)	2770x896x1490 mm
Wheelbase	910 mm
Total length of track on land	1230mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	130 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm
Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth of bulldozer blade	255 mm

3, Details photos of HQ08 Mini Excavator
4, Advantages introduction Of HQ08 Mini Excavator
5, Professional Loading and Packing of HQ08 Mini Excavator
6, Exhibitions of Haiqin Machinery
7, Certificate of Haiqin Machinery
8, MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
9, Warranty and Service.
HAIQIN machines has One Year Warranty.
During Warranty, if there is any part broken because of quality problem (except
easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information! Online 24 hours a day!
