Cheapest Mini Digger Products Hydraulic Hammer for Mini Digger Laidong 3-Cylinder Engine Mini Bagger

Product Description

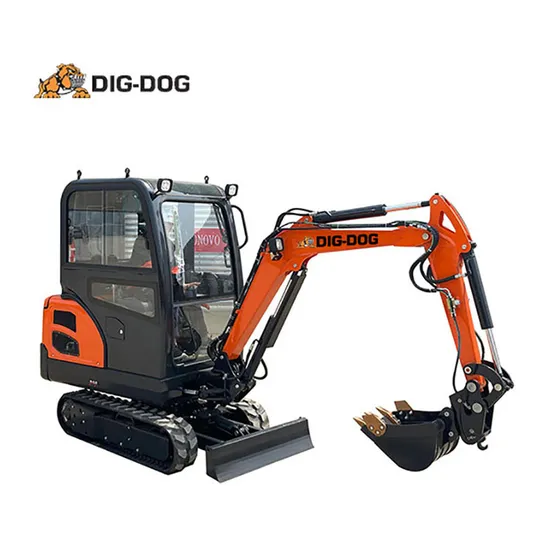

DG18 MINI EXCAVATOR
Application Range

DG18 mini Excavator with small wing structure and boom-side-shift option, which can be used for narrow-space operation rotation,retractable chassis, deflective boom, first-class configuration, load pilot operating system, changeable rubber track, imported engine, environmental protection standard (Euro 5 ) Can be equipped with a fully enclosed cabin to provide a comfortable environment for work.
This product with beautiful appearance, high configuration,superior perfomance,low fuel consumption,wide operating range. It is suitable for loosing soil of vegetable greenhouse,campus greening of municipal departments. digging the hole for tree planting of.Fuit-land Nurseries. concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place and so on.
Model and Specification

	SPECIFICATIONS
	Machine model No.	DG18
	Operating Weight	3968lbs/1800kg
	Bucket Capacity/width	0.06m3/435mm width
	Types of Tracks	Rubber Track
	Engine	LD 3-cylinder engine or LUBOTA engine(Euro V/EPA)
	Optional Configuration
	Hydraulically retractable undercarriager	Export non-fumigation wooden box package
	Swing Speed	Radiator

	SVERALL DIMENSIONS
	A. Overall Length	3865mm
	B. Overall Width	1050mm
	C. Overall Height	2270mm
	D. Chassis Width	1050mm
	E. Minimum ground clearance	210mm
	F. Cabin Height	2270mm

	Working Range
	G. Max Digging Height	3365mm
	H. Max Dumping Height	2385mm
	I. Max Digging Depth	2050mm
	J. Max Vertical Digging Depth	1725mm
	K. Max Digging Radius	3860mm
	L. Min. Swing Radius	1720mm
	M. Tail Swing Radius	1125mm

Details Images
Details Show

BRAND ENGINE	TRACK SCALE
Stable engine quality, high performance engine, ultra-low fuel consumption, strong power.Based on the near perfect matching technology between engine and hydraulic system, the power output is increased	The driving motor is powerful, reliable and stable. Working platform can be 360 ° Rotating, with strong rubber track

Delivery Process
FAQ
1.What are the advantages of your brand?
We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every DIG-DOG product is armed and durable with a 12-month warranty. We use high quality materials & parts sourced from the very best in China.Our design team works closely with
customers for any customized orders.
2.What logistics way for product delivery?
1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc. 2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway. 3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.
3.Which payment terms do you accept?
We can work on T/T bank transfer and 100% irrevocable L/C. Please contact our customer representatives directly for a specific term.
