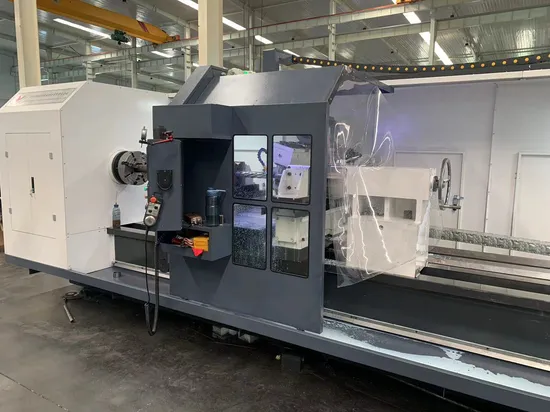

CNC External Whirling Milling Machine

Product Description

CNC external cyclone milling machine structure features:
1,The machine tool system is a wide number system.Molding knife processing.
2,The machine adopts four guide rails, high rigidity and good wear resistance.55° dovetail rail is adopted for bed saddle rail, which has high positioning accuracy, fast moving response and no creeping phenomenon in low speed feed.
3,machine tool guide rail lubrication using centralized intermittent special lubrication pump lubrication, lubrication in time.
4,The feed axis [Z axis, X axis] adopts precision ball screw, driven directly by servo motor, high transmission accuracy, good positioning accuracy.
5,headstock spindle C axis adopts servo motor + reducer + worm gear and worm structure.Spindle is equipped with four-jaw chuck to facilitate alignment of workpiece.
6,the machine is equipped with an external cyclone milling head, the milling head motor adopts high power frequency conversion motor (grade TWO energy efficiency).External cyclone milling head through servo motor + worm gear and worm structure automatic adjustment Angle, manual locking.(The outer cyclone milling head is equipped with Angle meter to ensure the knife rotating Angle)
7,The machine is equipped with 2 support frames.
8,tailstock sleeve feeding mode is manual feeding, convenient to disassemble the workpiece.Tailstock movement adopts mechanical feed manual locking.
9,the machine is equipped with chip discharging machine, convenient chip discharging machine is equipped with high pressure water pump, processing through forced cooling to achieve lubrication cooling effect.
10,The electrical components in the machine tool electrical control cabinet are delixi brand.
11,The machine is equipped with a semi-closed protective cover.
12,the processing efficiency of about 4 hours (Tr420×32 workpiece, thread length 1510mm).
XK450×5000
CNC external cyclone milling machine structure and main technical parameters

project	content	unit
Machine tool use	Machined trapezoidal thread
Work piece specification	Workpiece length specification	5000	mm
	The largest bearing	5500	Kg
	Maximum milling length	4600	mm
	Diameter range of machined workpiece	200-450.	mm
	Screw to	any
Lathe bed	High strength integral bed
	Bed width	1000	mm
	Bed guide rail type	The four guide
A whirlwind milling head	The milling head motor	Variable frequency motor (Level 2 energy efficiency)
	Milling head motor power	7.5	Kw
	Milling head reduction ratio	"
	Maximum diameter of cutter head	300	mm
	Knife shaft diameter	φ 60 (key 14)	mm
The tailstock	Spindle diameter of tailstock	Φ 130	mm
	Maximum stroke of tailstock sleeve	100	mm
	Tailstock sleeve mounting taper hole	Morse # 6
Number of servo control shafts	Rotating head of work	C axis
	The bed saddle	The Z axis
	Slip board	The X axis
	Milling head rotation	A shaft
	Wide number control system	25i
C axis	C axis motor	22	Nm
	C axis drive type	Worm gear and worm	domestic
	C axis transmission ratio	1:30 0
	C shaft speed	0 to 25	r/min
	C axis chuck specifications	K72-400-A28	domestic
The X axis	The X axis motor	18	Nm
	X axis ball screw specifications	5010	domestic
	X axis guide rail pair type	55 ° dovetail
The Z axis	The Z axis motor	18	Nm
	Z axis ball screw specifications	8010	domestic
	Z-axis bed saddle guide rail pair type	Mountain track + horizontal track
A shaft	A spindle motor	15	Nm
	A shaft drive type	Worm gear and worm	domestic
	A shaft transmission ratio	2:
Chip removal machine	type	Chain plate
	Chip extractor cooling water pump	High pressure water pump
Electrical system	Air switch	delixi
	contactor	delixi
	relay	delixi
The power supply parameters	Three five line system	Three live wire + zero wire + ground wire
	voltage	380	V
	power	25	Kw
Machine tool dimensions		8500 * 1800 * 1900
Machine weight		10	ton

Q1, How do I send my query? You can contact us via email, phone, instant messaging (WhatsApp, wechat, Skype). Q2,If you don't know which model is suitable for your company, please tell us your requirements for the equipment, or you can send us the product drawings, and our engineers can help you choose the most suitable model for you. Q3,delivery time The project will be completed within 20 days after receiving the deposit. Please communicate with the sales staff about the specific construction period. Q4,Payment Terms 30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales. Q5,Can your engineers come to help us install and debug the machine? Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost. Q6, If I can't know how to operate. Can your engineer help me programme well on machine? Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you. Q7,Is there only one model of this device? The standard processing diameter range of this equipment is 350mm, if you have other processing range, you can negotiate with the sales contact. Length range, we can do from 1000mm to 8000mm, and all are integral cast bed. Q8, processing efficiency Our CNC machine tool from the lathe bed casting weight, wide guide rail, large motor power, can use a maximum diameter of 50 round rod milling cutter processing, the maximum cutting depth can reach 40mm, so the processing efficiency is very high. Q9,What control system does the equipment use Our standard configuration is Guangzhou CNC system, fanuc and Siemens can also be used, but the price is slightly different, please contact sales for details. Focus on the production of high efficiency special CNC machine tools.We also take special orders. That is, we can design machine tools for special purposes.

---
