1000mm 1300mm Wide Abrasive Laser Cutting Deburring Machine Metal Polishing Machine Manufacturer

Product Description

1000mm 1300mm Wide Abrasive Laser Cutting Deburring Machine Metal Polishing Machine Manufacturer
This equipment is a dry abrasive belt model with double sand racks. It is mainly used for deburring, workpiece edge, hole deburring effect, sanding the surface of the workpiece, making the contour edges around the surface of the workpiece and in the hole smooth and round, and realizing wire drawing, descaling, polishing, and slight pouring on the surface of metal sheets. Angle and other processing. The burrs generated in the processes of stamping, shearing, laser machine cutting, plasma cutting, etc. can be removed in all directions at one time. The processing process is safe and reliable, so that the workpiece can achieve perfect results.
This deburring machine support laser cutting machine, CNC stamping, various CNC processing or other machining deburring front production line. It can work for removal of parts surface, contour edge and hole edge burr and uniform chamfering.
TECHNICAL PARAMETERS:

Minimum size of part	20x20mm
Function	Deburring , chamfering, polishing Optional: edge rounding
Column diameter	35mm
Bearing	NSK
Max width	800mm 1000mm 1300mm
Max thickness	80mm
transferred speed	1~10m/min
Electronic component	Chint
Motor power of conveyor belt	1.5KW
Motor power of the first sand frame	11kW
Motor power of the second sand frame	7.5kW
Conveyor belt	3020mmX1000mm
Machine size	1800*1600*2100mm
Weight	2600kg

CONFIGURATIONS:

Smart Control Panel
Simple and clear control buttons;
Digital display meter to control the lifting with higher precision.
Electrical Control Box
Uniform and tidy;
Safe and stable performance.
Double Abrasive Belts
Double sand belt frame facilitates metal deburring of stainless steel and carbon steel process with good finish.

Conveyor Belt
Multi layer thickened material facilitates no deviation of conveyor belt and long service life.
OPTIONAL FUNCTIONS:

Polishing Roller
The sand frame can be replaced with a polishing roller. The polishing roller is used for the rough grinding of all metal(including gold), wood, plastic and other workpieces, for removing metal burrs, sanding, wire drawing, grinding, decoration, matte, soft light, etc., mainly used for grinding stainless steel extra find sand grain polishing and mirror treatment.
Brush Roller
Brush rollers are mainly applied to achieve edge rounding or aluminum deburring;
Common configuration: 4/6/8 brush rollers.

MACHINE FEATURES:
** The surface is deburred and finished, and the abrasive belt can be changed at will.The mesh number of the product will change accordingly.
** It is suitable for the removal of burrs in the holes of sheet metal parts on the same plane or relative to the same plane by CNC punching and shearing machines; the removal of burrs generated after laser cutting; the removal of slag generated by flame cutting or plasma cutting, etc.
** Replace the burrs with files, scrapers, or use electric and pneumatic tools for grinding process solutions, so that the workpiece can be polished more evenly; it is safer, and it can effectively reduce labor costs and improve production efficiency.
** The equipment adopts Chint button system, which is simple and convenient to operate, and the thickness digital display can be electrically upgraded and fine-tuned, which is convenient and quick to adjust the grinding amount.
** This machine uses common consumables in the market, and imported sandpaper can also be customized to improve production efficiency and meet special requirements of products.
** The equipment is equipped with a dust collector interface to suck away the dust, metal shavings and dust generated during the working process of the equipment. You can choose a separate dust removal equipment or link the existing equipment in the factory.
SAMPLES:

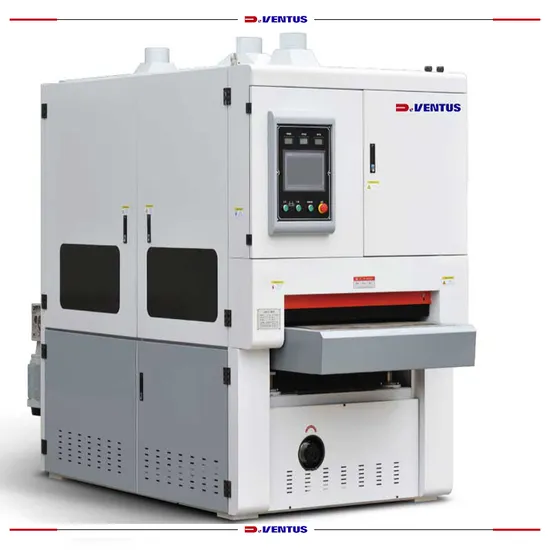

MACHINE DISPLAY:
ABOUT US: Jinan D.Ventus Mechanical Equipment Co., Ltd is a privately owned company from china. As an enterprise with core technology and independent intellectual property rights, we are committed to the development and manufacturing of metal processing machineries, like CNC laser machines (Fiber laser cutting machine, fiber laser cleaning machine, fiber laser welding machine, automatic robot arm welding equipment, laser marking machines), CNC spare parts, metal polishing machine and other powder coating equipment. Well-equipped with CNC machinery and strong technical force, we welcome OEM and ODM orders. We guarantee the stable and timely delivery, reliable quality, and timely on-site training and after-sales service. We offer products approved by SGS enterprise certification, CE Certifications, design patents.We strictly conform with industrial process and safety guidance by CE and ISO9001 to offer high quality machines. All of machines are fully assembled and thoroughly tested and checked prior to shipment. Our products have good reputations both domestically and abroad. Our products have been exported to America, Australia, Argentina, Mexico, Malaysia, Paraguay, Russia, Pakistan, Brazil, Ethiopia, Tunisia, Vietnam, Indonesia, Bulgaria, India, Jordan, Mongolia, etc. We offer 24 hours online support for customers all over the world. Clients' satisfactions are our always goals to persue. We provide upgrades and maintenance for software system within warranty period. And also we provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.

---
