Product Description:

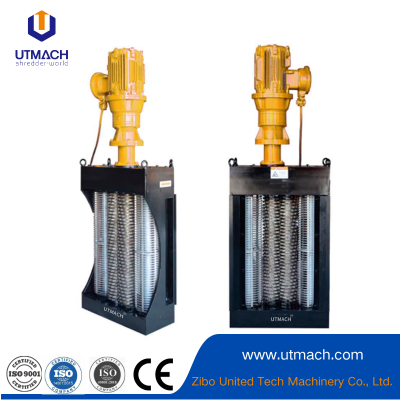

The Waste Water Grinder is a specialized machine designed for grinding and shredding solid waste in wastewater systems. It effectively breaks down debris, rags, plastic, and other waste materials that may cause blockages or disrupt the operation of sewage treatment plants. By preventing blockages, this grinder ensures smooth operations and extends the lifespan of downstream equipment, such as pumps and pipelines.
Features:
Heavy-Duty Grinding: The grinder efficiently handles solid waste, including paper, plastic, and other non-biodegradable materials.
Automatic Operation: Works continuously and automatically in demanding wastewater treatment environments.
Corrosion-Resistant: Constructed with high-quality stainless steel to withstand harsh sewage environments.
Low Energy Consumption: Designed for energy efficiency, reducing operating costs over time.
Compact Design: Can be easily installed in tight spaces without compromising performance.
Applications:
Sewage Treatment Plants: Used for grinding debris in wastewater to prevent blockages and damage to downstream systems.
Industrial Wastewater: Helps manage wastewater from factories, reducing the risk of clogging and maintenance.
Municipal Wastewater: Widely used in city sewage treatment systems to ensure clean and efficient water processing.
Food and Beverage Industry: Efficiently handles wastewater containing food waste, oils, and other organic debris.
Double drum grinder, suitable to flow rate over 1100m3/hour.
Specifications as follows：
Technical parameter
Item
| Model & Specification
| Flow Rate (m3/h)
| Motor Power (KW)
| Net Weight (kgs)
|
Double
drum grinder
| UTD1100
| 1100
| 5.5
| 670
|
UTD1600
| 1600
| 5.5
| 740
|
UTD2200
| 2200
| 7.5
| 815
|
UTD3000
| 3000
| 7.5
| 890
|
UTD4000
| 4000
| 7.5
| 1144
|
UTD5200
| 52000
| 11
| 1442
|
UTD6700
| 6700
| 11
| 1570
|
Note:
1. The voltage about the Product specification can be selected by the customer’s specific requirements.
2.The grinder capacity can be influenced by the material composition .
The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
>>
