US$6,000.00-10,500.00 | 1 Set (MOQ) |

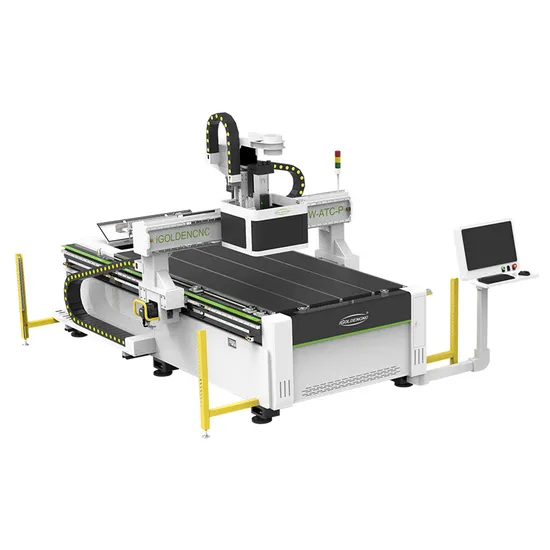

Model | iGW-ATC-P1325 |
Working area | 1300*2500*250mm |
Spindle | HQD 9.0kw Air Cooling Spindle |
Max. Running Speed | 50000mm/min |
Max. Working Speed | 30000mm/min |
Repositioning Accuracy | 0.02mm |
Machine Body | Pipe welded frame bed |
Gantry | Steel Structure |
Worktable | Vacuum Suction with T-slot Table |
Tool library | Hidden tool magazine |
Guide Rails | Taiwan HIWIN |
Ball Screw | Taiwan TBI |
Driver | Japan YASKAWA Servo Drive and Servo Motor |
Reducer | Japan SHIMPO |
Frequency Converter | Taiwan Delta |
Control System | Taiwan Syntec |
Protection | Grating protection system |
Working Voltage | 380V/50Hz |
