Full Automatic PLC Stiff Stay Knot Fence Machine

Product Description

Product Description

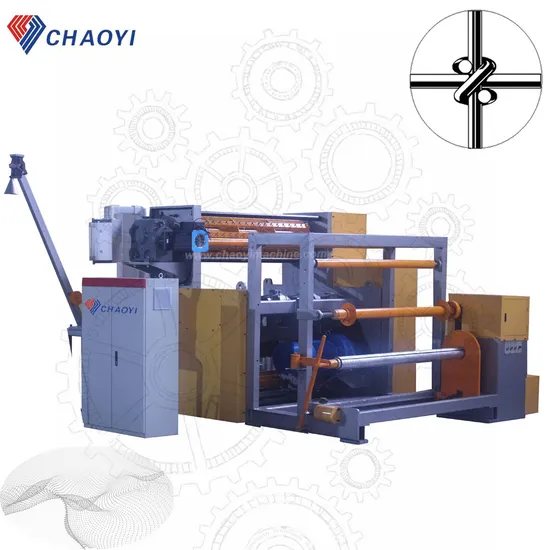

full automatic PLC Stiff Stay Knot fence machine
The full automatic PLC Stiff Stay Knot fence machine knot was initially designed for the North American horse fence market,then known as the Square Deal or "S" knot This knot features a distinctive smooth.strong knot that utilise 75% less knot wire when compared to the Fixed Knot.
This design ensures an economic and robust knot that cannot damage the animal's pelt. Product Specification

full automatic PLC Stiff Stay Knot fence machine specification
Model Parameters	18-2080	20-2438
Maximum Fence Width	2080mm (82")	2438mm(96")
Maximum number of Line Wires	18	20
Line Wire Spacing	Minimum 50mm(2") with 25mm (1") increments
Stay Wire Spacing	50mm,75mm,100mm, 150mm,225mm and 300mm
Edge Wire Size	φ2.0mm-3.0mm
Line Wire Size	φ2.0-2.5mm
Stay Wire Size	φ2.0-2.5mm
Knot Wire Size	φ2.0mm-φ2.5mm
Line Wire Tensile Range	850-1350N/mm2
Stay Wire Tensile Range	525-850N/mm2
Knot Wire Tensile Range	400-525N/mm2
Max Length of roll	100m/ roll
No. Strokes (Stay Wires) Per Minute	30row/ min
Control system	servo motor,PLC
Total Machine weight	8T	10T
Approximate Floor Area Required	10m×22m	11m×22m

Product Detail

full automatic PLC Stiff Stay Knot fence machine 's detail
PLC CONTROL	The PLC CONTROL easy setting and adjustment of the machine during operation as well as displaying real time manufacturing information and machine status.
Stiff Stay Knot fence machine Weaing fence	Use the bending fence part to make the wire surface cleaner and firm.

It can weave various kinds of full automatic PLC Stiff Stay Knot fence machine as follow:

Cattle fence	Horse fence	Grassland fence

Company Profile
We have 2 senior engineers,10 senior technicians, more than 100 employees.
Main Products: Hinge Joint Fence,Fixed Knot Fence and Hinge Joint Fence Machine, Fixed Knot Fence Machine,Welded Wire Mesh
Machine,Chain link Fence Machine,Barbed Wire Machine etc.
Supply Capacity: Field Fence 40000m/day with 14sets fence machine
Each Machine 10Sets/month full automatic PLC Stiff Stay Knot fence machine
Main Market: South Africa,Asia,South America,North America,Middle East,Europe,etc .
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by ISO,BV.
5)Have our own inspection team to do the quality control.

Our Service
Pre-Sales Service
1.We can send you some pictures and video
2.If you need to visit us ,We can pick up you
3.Kindly to contact me about machine questions
After-Sales Service
1. one year guarantee for whole machine
2. 24 hour technical support by e-mail
3. calling or door-to-door service
4. use-friendly English software, user manual and detail Videos/CD
Packing & Delivery

Packaging
We will pack the machine in pallet, in plastic or in bulk and then delivery the machine to your designed port from Xingang port of China.
