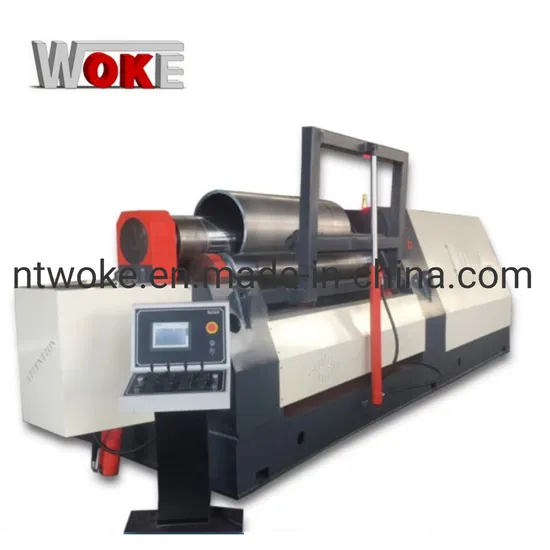

4 Rollers Rolling Bending Plate Machine CNC Control

Product Description

· Four Rollers Plate Bending Machine, CNC Control
Our 4 rollers bending machine advantages:
Fully hydraulic drive, Siemens control system, can get perfect rolling work on big thickness with small diameter in
round and tapered shape.

Model	Max.rolling thickness	Max.pre-rolling thickness	Plate width	Diameter of upper roller	Main motor power
	mm	mm	mm	mm	kw
W12-25X2000	25	20	2000	350	22
W12-25X2500	25	20	2500	400	37
W12-30X2000	30	25	2000	300	37
W12-30X2500	30	25	2500	400	37
W12-30X3000	30	25	3000	470	45
W12-40X3000	40	32	3000	550	55
W12-50X3000	50	40	3000	610	55
W12-60X3000	60	50	3000	670	75
W12-70X3000	70	60	3000	730	75
W12-80X3000	80	75	3000	780	90
W12-90X3000	90	75	3000	820	90
W12-100X3000	100	80	3000	880	110

· We have 2 rollers, 3 rollers plate bending machine
Related sheet metal working machines we are able to supply
Press Brake Machine
Hydraulic Guillotine Shear
CNC Fiber Laser Cutting Machine

---
