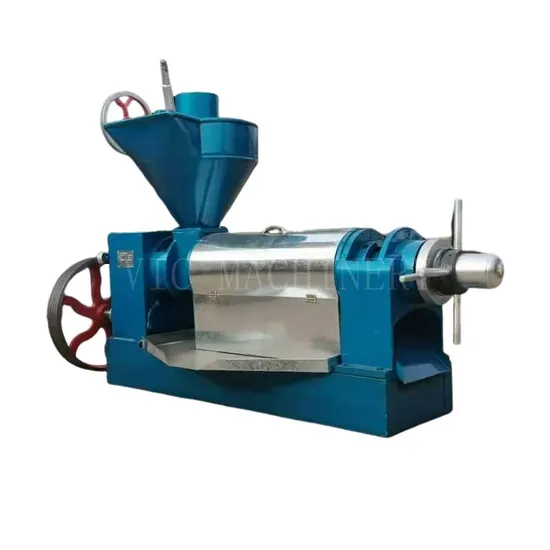

High output olive sunflower cotton seed coconut essential screw oil press machine plant automatic copra peanut soybean cooking edible cold oil extractor

Product Description

High output olive sunflower cotton seed coconut essential screw oil press machine plant automatic copra peanut soybean cooking edible cold oil extractor Product Description
Application about the automatic extractor machine:
This screw oil press automatic extractor machine is advanced expeller which is widely used in pressing oil from vegetable oil seeds, such as soybean, peanut, sunflower seeds, cotton seeds, sesame, tea seeds, copra, jatropha seeds, castor seed, etc. And the product oil is for both edible and biodiesel fuel purpose.
The automatic extractor machine has advantage of high efficiency, low consumption, simple operating, stable function, easy maintenance, high productivity and high oil output.
Advantage about the automatic extractor machine:
1.Simple and easy operation,one key to start without other operating
2.High oil yield to the highest 97%
3.Reliable transmission systems are mostly helical gears with greater torque
4. Pure copper motors are more powerful and less failure rate
5. Reasonable design and configuration of strip and round row ensure faster oil output and higher oil yield
6. Stainless steel oil guide plate is cleaner and more sanitary
7 Advanced automatic stirring forced feeding system ensures the uniformity and continuity of feeding
8.Convenient and labor-saving adjustment and disassembly system facilitates product adjustment and maintenance
Main data about the automatic extractor machine:

Model	6YL-165 oil press
Capacity	700-800kg/h for oil seeds
Power	30KW(380v/50hz/3p)
Residue oil in cake	Less than 8%
Size	2160x680x890mm
Weight	1200KG

Other model automatic extractor machine

Model	Capacity(kg/h)	Power(kw)	Machine Size(mm)	Weight(kg)
6YL-68	50kg/h	5.5kw	930x490x820	150kg
6YL-68C	50kg/h	5.5kw	930x575x1055	150kg
6YL-68J	50kg/h	5.5kw	930x575x1055	150kg
6YL-80	100kg/h	5.5kw	1307x550x1102	300kg
6YL-95	200kg/h	7.5-11kw	2155x580x1250	550kg
6YL-100	200kg/h	7.5-11kw	2050x550x1180	550kg
6YL-120	300kg/h	11-15kw	2150x610x1300	700kg
6YL-130	450kg/h	15-18.5kw	2180x610x1480	800kg
6YL-160	550kg/h	18.5-22kw	2180x610x1480	900kg
6YL-165	700kg/h	30kw	2280x620x1680	1300kg

More picture and details about the automatic extractor machine
Advanced automatic stirring forced feeding system(hopper can be nade of stainless steel )
Gear box and pulley
Row and round row
Big cake out
Adjustment handle
Stinless steel cover and oil pan
Workshop corner
Parts
Round ring for 6YL-165
Package pictures
Other type 6YL-system oil press machine pictures
