Supply Semi-Automatic Eight-Axis Power Transformer Winding Machine

Product Description

Product Description

Eight axis, suitable for line diameter 0.02-0.50mm, can be used for larger line diameter
Product Features
1. Imported guide rail and lead screw are adopted to ensure the precision of machine positioning and repeated positioning. Each step of high-speed spindle assembly has passed strict quality control, high speed, low noise and long service life
2, machine type replacement is convenient, the need to call the appropriate program and replace the fixture can be

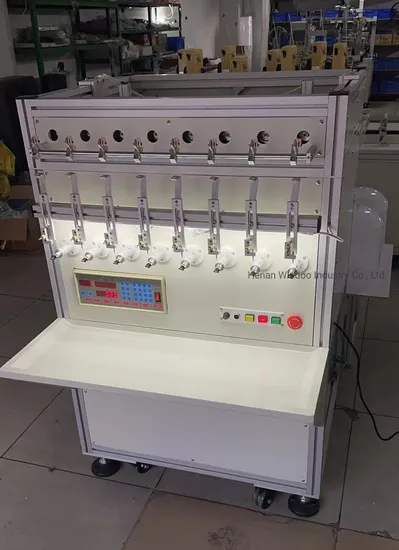

Detailed Photos

Product Parameters

Eight axis stranding machine parameters This machine is CNC twisted wire winding desktop integrated machine, the front end is equipped with a work surface (800mm long, 300mm wide), the bottom of the machine is equipped with casters and foot cups for easy movement. 1000 sets of winding data can be stored, which is driven by stepper motor to wire row. Input data will not be affected by power failure. The specific collocation is as follows:
Spindle winding jig inner hole is 12mm, spindle winding motor: AC750W, suitable winding diameter within 0.02mm- 0.30mm (torsion wire configuration standard tensioner is 0.04-0.12mm), the maximum spindle speed is adjustable at 8000 RPM; Number of shafts: eight shafts front exit shaft with guide needle row, axis spacing around spool: 90 mm, row motor: 57 stepper motor, row width 0-85mm adjustable; Stranded motor: DC400W, hanging motor: 86 stepper motor, twisted wire length 0-300 mm adjustable, twisted wire number: odd number of strands 1, 3, 5, 7, 9, 11 adjustable; Suitable torsion wire diameter 0.04mm- -0.12mm, with magnetic damping tensioner 8 (0.04-0.12mm), 8 wire barrel (diameter 220 mm height 300mm), equipped with copper spool payout rack. The width of the machine is 800mm, the depth is 1500mm and the height is 1350mm. The net weight of the machine is about 260KG.

Machine Model	WD-TS808H
Machine Name	Semi-Automatic 8-axis winding machine
Number of Spindles	8
Axls spacing distance(mm)	70
Spindle revolutions	12000RPM
Wire Diameter Scope	0.025-0.4mm
Control System	Motion control card with touch screen
Control Motor	Spindle Panasonic servo 1.5KWXYZ 400W respectively

Power	220V50/60Hz
Air source	above 0.5Mpa
Machine size	1050*1250*1550mm
Machine weight	700kgs
Remarks	Optionally add lagging machine and stranding machine, automatic peeling machine

Packaging & Shipping
Transport:
We support air, sea and land transportation.Our packing is foam + carton. Ensure the safe transportation of products.


Our Advantages

Wodu Company takes "quality first, technology first, service first, customer first" as the purpose, always "pragmatic, scientific management, integrity-based, believe in management and control innovation, constantly improve their own skills" concept.
FAQ

Q1. How soon can I receive the quotation?
We will send you the quotation within 24 hours after receiving the inquiry.

Q2. How soon can I get the sample and quality?
It usually takes seven days to produce the sample. Bulk orders usually take 7-15 days. If something urgent comes up, the delivery time may be postponed

---
