LCD Display Digital Universal Hardness Tester

Product Description

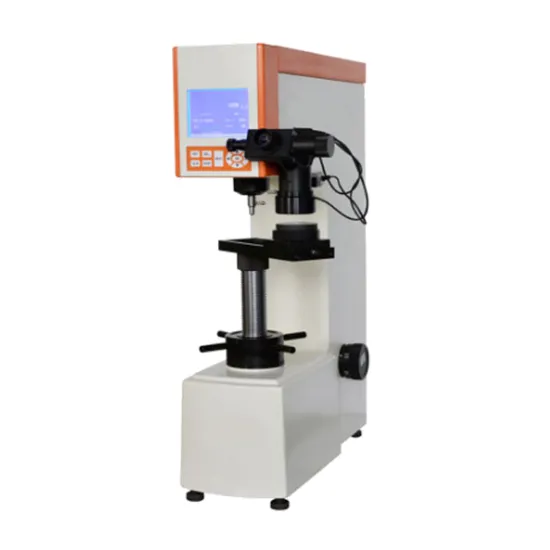

Digital Universal Hardness Tester
Product Application: XB-OTS-570HAD is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.
XB-OTS-570HAD equip 7-testing-foce and 5-indenter, it is universal to measure a most of metal material.
XB-OTS-570HAD dwell time from 2 to 60S can be setup by the "time key" inside the LCD panel, it is much convenient than the setup on the manual hardness tester.
XB-OTS-570HAD loading ,dwell and unloading is driven by electronic motor automatically , doesn't need the operator to handle it, it eliminates the human operating error maximum.
XB-OTS-570HAD doesn't need the operator to read and check the hardness scale table ,it will compute and display the testing result once press the key of digital length sensor.
Technical Specifications:

Product Name	Digital Universal Hardness Tester
Model	XB-OTS-570HAD
Rockwell Scales	HRA, HRB, HRC
Rockwell Testing Force	60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)
Brinell Scales	HBW1/30,HBW2.5/62.5,HBW10/100,HBW2.5/187.5
Brinell Testing Force	31.25Kgf(306.5N),62.5Kgf(612.9N,187.5Kgf(1839N)
Vickers Scales	HV 30,HV100
Vickers Testing Force	30Kgf(294.2N),100Kgf(980.7N)
Rockwell Hardness Indication	Digital LCD display
Rockwell Resolution	0.1HR
Loading Control	Automatic
Data Output	RS 232/Printer
Magnification of Microscope	Brinell:37.5x; Viceers:75x
Dwell Time	2~60s
Max. Height Of Specimen	Rockwell:170mm; Brinell, Vickers:140mm
Instrument Throat	165mm
Dimension(LxWxH)	520 x215 x700mm
Packing Dimension	630 x440 x960mm
Gross/Net Weight	120Kg/90Kg
Execution Standard	GB/T230.2, JJG112, EN-ISO 6508 , ASTME-18

Package details:
1.Strong standard wood case, inner plastic films wrapped for Vibration Testing Machine
2. Usually we delivery the equipment by air,by sea or by express. it depends on customer
Advantage Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE Customer Support Services Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair Recommend Products Company Profile
Dongguan Xinbao Instrument Co., Ltd, with its own brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, aviation, etc.
Manufacturing Technique Customer Photos Now OTS has its main production base in Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines under CNAS calibration, so customers can check the function and quality immediately. Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What's more, OTS has enough stock to satisfy customers need in time. In the meanwhile, every machine must be examined for 3~days before shipment and with lifetime maintenance service. Certifications Packing&Shiping FAQ 1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2.What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4.How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention~Thank you!

---
