Good Quality Low Price Horizontal Drilling & Tapping Machine Driller Vertical

US$3,324.00
1 Set/Sets
US$3,124.00
2-4 Set/Sets
US$3,024.00
5-7 Set/Sets
US$2,980.00
8-9 Set/Sets
US$2,750.00
10+ Set/Sets

Basic Info.

Model NO.
CX-13016
Controlling Mode
CNC
Number of Shaft
Customized
Hole Diameter
16mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Auto Multi-Spindle Head Drilling & Tapping Machine
Machine Type
Vertical Bench Table Type Drilling Machine
Application
Make Holes on Metal
Warranty
One Year Warranty
Max Drilling Diameter
1-16mm
Advantage 1
Multi-Functional
Advantage 2
High Accuracy
Advantage 3
Competitive Price
Spindle Travel
130mm
Base Size
297*440mm
Brand
Chansin
Transport Package
Plywood Case
Specification
114*74*194cm
Trademark
Trade Mark
Origin
Dongguan, China
HS Code
8459700000
Production Capacity
80 Sets Per Month

Product Description

Product Description
Good Quality Low Price Horizontal Drilling & Tapping Machine Driller Vertical
CX-13016 Parameters
Max Drilling Diameter 16mm
Spindle Travel 130mm
Distance from Spindle Center to Column 210mm
Distance from Spindle Nose to Working Table 335mm
Spindle Taper JT6/ER25
Spindle Rotation Range 1400/2000rpm
Working Pressure 20-25kg/cm2
Base Size 297*440mm
Total Height 1080mm/1820mm
Motor Power 1.5kw
Voltage 240v/380v/415v
Cooling Pump Motor Power 45w
Weight 280-490kg

Standard Type Drilling Machine
Drilling Machine CX-8510 CX-13016 CX-15035
Maximum Drilling Diameter 10mm 16mm 35mm
Electricity 380V/415/440V 3 Phase 380V/415/440V 3 Phase 380V/415/440V 3 Phase
Spindle to Column Distance 200mm 210mm 250m
Spindle Nose to Work Table 100-330mm 100-350mm 120-420mm
Spindle Speed 1400/2800 rpm 1400/2000 rpm 1000/1400 rpm
Machine Head Travel 280mm 280mm 320mm
Motor Power 0.75kw 1.5kw 2.2kw

Standard Type Tapping Machine
Tapping Machine CX-4508 CX-6516 CX-6516
Tapping Range 1-8mm 2-16mm 5-32mm
Machine Head Travel 260mm 300mm 460mm
Spindle Nose to Work Table 90-350mm 100-350mm 100-600mm
Multi spindle Capacity M2*16,M3*9,M4*5,M5*3,M6*2,M8*1 M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1 M8*16,M10*10,M12*7,M14*6,M16*4,M18*3,M20*3,M32*1
Motor Power 0.75kw 1.5kw 2.2kw
Electricity 380V/415/440V 3 Phase 380V/415/440V 3 Phase 380V/415/440V 3 Phase
Spindle Stroke 45mm 65mm 65mm

Drilling and Tapping Heads
CX-HD5-85 AIR/HYDRAULIC DRILLING HEAD Maximum Drilling φ1-φ10mm
Main Spindle Taper ER20/JT6
Main Spindle Travel 85mm
Spindle Max Rotating Speed 1400 (r/min)
Cylinder Area 21.6m2
Center Height 70±0.01
Motor 0.75KW
Net Weight 38kg
Using Hydraulic 20-30 kg/cm2
Size(L*W*H) 115*464*370mm
CX-HD6-130 HYDRAULIC DRILLING HEAD Maximum Drilling φ1-φ16 mmMain Spindle Taper ER25/JT6Main Spindle Travel 130mmSpindle Max Rotating Speed 1400 (r/min)Cylinder Area forward 37.1m2 backward 15.8m2Center Height 70±0.01Motor 1.5KWNet Weight 50kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 160*719*417mm
CX-HD8-150 HYDRAULIC DRILLING HEAD Maximum Drilling φ1-φ35mmMain Spindle Taper MT4/LINE GROOVEMain Spindle Travel 150mmSpindle Max Rotating Speed 1500 (r/min)Cylinder Area forward 71.2m2 backward 31.4m2Center Height 90±0.01Motor 1.5KWNet Weight 67kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 280*860*470mm

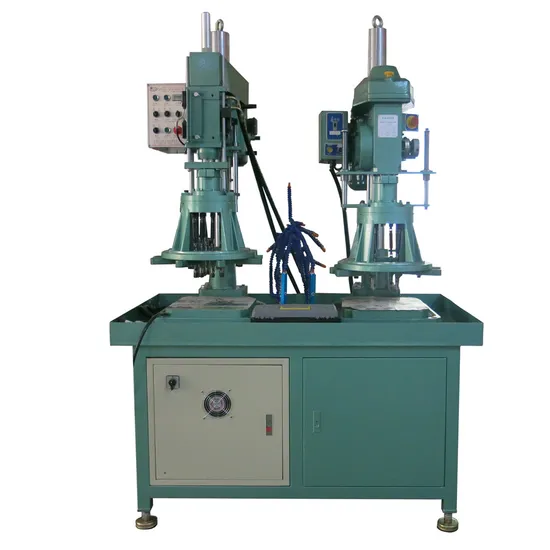

Non-standard Drilling & Tapping Machine
Detailed Photos
Company Profile
FAQ
1. Are you a manufacturer or trade company?
-- Yes, we are a manufacturer, our factory is in Dongguan, Guangdong Province, China.2. What is payment terms?
-- 30% deposit, the balance will be paid before delivery.3. What is the warranty time ?
-- One year warranty and life time maintenance.4. Do you provide OEM service?
-- Yes,we provide OEM service.5. Can you send engineers to serve overseas ?
-- Yes, we can, but you are responsible for round-trip air tickets and accommodation of our engineers.6. What is the loading port ?
-- Shenzhen / Guangzhou port in China.
