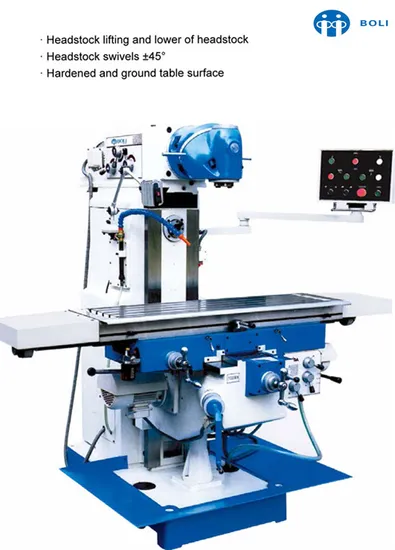

High Quality Muv100 Milling Machine

Product Description

MUV100
· Excellent price and performance ratio.
· Wide range of applications.
· Solid,heavy-duty model made from high-grade cast iron.
· Solid,precise cross table,precision-ground.
· All guideways hardened adjustable due to tapered gibs.
· One shot lubrication.
· Dove tail slideways.
· Main switch with protective motor switch,right-left-hand rotation
switch,emergency stop switch.
· Heavy duty handwheel with scale.
· Equipped with work lamp, cooling system, oil tray.
· Bay table get more capacity.
Standard Accessories:
Drill chuck/Drawbar/Work lamp
Milling vice/Coolant system/Chip tray
X-axis mechanical power feed
Toolbox&tools
Operation manual/Quality certificate/Packinglist
Optional Accessories:
DRO/vise
Milling collet chuck
Rotary table/Dividing head
58 pcs clamping kits
Z-axis automatic feedKeyless drill chuck
Technical Parameters:

Model No.	Unit	MUV100
max. end milling capacity	mm	mm 25(0.98")
max. face milling capacity	mm	mm 125(4.92")
work table size	mm	mm 1120×260(44.09"×10.24")
swivel angle of swivel head	°	360
cross travel	mm	mm 270(10.63")
longitudinal travel	mm	mm 600(23.62")
vertical travel	mm	mm 420(16.54")
taper of spindle bore		ISO40
spindle nose to table	mm	100-480(3.94"-18.90")
step of spindle speed	steps	11
range of spindle speed	rpm	45-1660
table feed	mm/min	18-310
motor	kw	kW 2.2
packing size	mm	1655×1325×1730
G.W.	kg	1350

---
