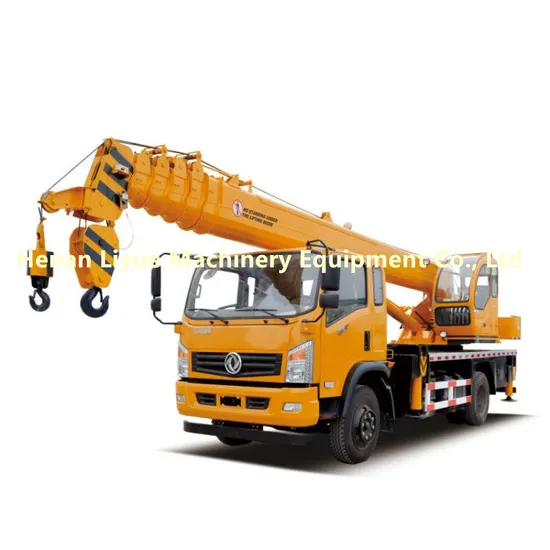

12 Ton Mobile Crane China Construction Lifting Equipment Cranes

Product Description

Good Quality JAC 10 Wheels 12tons 10tons 8tons Truck Mounted Crane Product Description

Project		Unit	Value
Crane Dimension	Model	---	QY 12-5-34
	Dimensions (Length*Width*Height)	mm	11260*2330*3260
Chassis Truck Data and Weight	Total Mass	kg	15800
	Front and Rear Axle Load	kg	4800/ 11000
	Engine Model	---	CY4BK351
	Engine Powder/ Engine Displacement	HP/ml	131/ 3856
	Engine Torque Ratings	N.m/, r/min	400/ 2800
	Drive Type	---	4*2 Left Hand Drive
	Emission Standard	---	Euro 5
	Tyre Size	---	8.25-20LT
Working Parameter	Sections	Piece	5 Pieces Hexagon Sections
	Diameter of Wire Rope	mm	13
	Capacity of Auxiliary Winch	Ton	8
	Speed of Sing Rope (No Load)	m/min	110
	Hydraulic Tank Capacity	L	200
	Max. Total Lifting Capacity	KG	12000
	The Basic Boom Lifting Torque (Max)	KN.m	420
	Max Lifting Height	m	34
	The Longest Boom Lifting Torque (Max)	KN.m	110
	Working Radius	m	3--22
	Max. Speed for Main Winch	m/ min	110
	Max. Speed for Auxiliary Winch	m/ min	110
Travelling Parameter	Max Travel Speed	Km/ h	75
	Max. Gradeability	%	25
	Min. Turning Diameter	m	17

Product Process

Famous Brand Hydraulic Parts for our Truck Crane



Prodution Progress

Packaging & Shipping

Client Visit

Adhering to "good quality, competitive prices, fast delivery, and good after-sales service" in mind, we welcome customers from all over the world to visit us

Certifications

Optional Device


Advanced Equipment
Our Advantages

1- Large outrigger span, more stability of the operation.
2- Using six-edge type boom, the strength is greater.
3- Using European and American top hydraulic components, the crane is more reliable.
4- Oil circuit interface is chuck type, never loophole.
5- Using multi-leg control valves. Leg cylinders can be adjusted separately, more convenient and quick.
6- Using high-strength steel plate, the structure is more compact, the installation space is smaller.
7- Plate using laser cutting machine blanking, streamlined appearance has a good sense of beauty.

FAQ

A: Are you the manufacturer?
Q: Yes, we are the manufacturer.
A: What kind of truck cranes do you produce?
Q: Truck crane and truck mounted crane from 2.5T to 25T.
A: What kind of truck chassis do you use?
Q: Dongfeng, T-King truck and so on.
A: What are your payment methods?
Q: T/ T, L/ C, West Union, Paypal, Money Gram, Alipay and so on.
A: What is the delivery time?
Q: Within 20 days after we receive the deposit.
A: What's the mode of transportation?
Q: Normally by 40 feet open top containers, flat rack container or bulk vessel.
A: How long is the warranty?
Q: 1 Years warranty service.
A: How long is the history of your factory?
Q: LIYUE has been in producing truck cranes since 1980.

---
