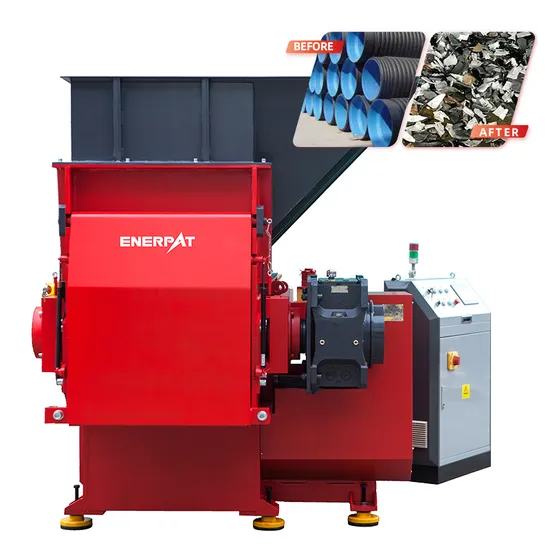

Full Automatic Single Shaft HDPE Lumps Shredder

Product Description

Product Description
Single Shaft Shredder (MSA-F Series) MSA-F Series Single Shaft Shredders are small to medium size reduction machines suitable for processing a wide range of materials to a uniform particle size. The products can often be sold as is, or be sent for further processing through additional equipment. Throughputs typically range between 300kg/hr -10,000kg/hr+ depending on the model, material type and application. MSA-F Series Single Shaft Shredders are widely used in the volumetric reduction of various waste products, including but not restricted to the following. Plastc Bottles, Plastic Pipes, Woven Bags, Electrical Cable, Wood, Paper, Domestic Rubbish & Electronic Waste. A suitable screen can be chosen depending upon the materials being processed and the next processing requirement. The Output material discharged by the shredder could be an end product or the primary feed for the next process. The MSA-F Series Shredder can be equipped with many different rotor configurations. In addition, a cooling system, bead welds & an additional wear layer can be added.

Details
Full Automatic Single Shaft HDPE Lumps Shredder

Bearing / Bearing Holder High strength bearing,long service life	Electric System Intelligent control system with overload protection	Hydraulic System Two-speed hydraulic system,guarantee the capacity	Hydraulic Material Pusher Automatic working which can accept continuously feeding

Cutter Shaft Structure
V type rotor knives layout design,special heat treatment knife material DC 53,4 sides can be used
The gaps between the rotor knives and counter knives can be adjusted.
The cutter shaft with surfacing treatment can be used for shredding hard materials like light scrap metals
Screen Structure The screen can be changed conveniently,the end products size depends on the screen mesh size
Machine has screen supports,which been controlled by the hydraulic cylinder,with safety switch
Customized screen mesh design depends on different materials
Material Pusher Structure
The chamber adopting advanced seal design,with adjustable copper guide blocks and integrated front guide plate
Dust leakage groove -- The dust will be removed from this groove,good protection for the hydraulic system
Power Drive System High efficiency electric motor with star delta start,F1200 and F1500 with Hydraulic Coupler
Heavy Duty Gearbox - Adopting high safety factor models,connect with the cutter shaft directly
Gearbox damping device - prevent damage for the power drive system
Applications
Crushing Effect
Technical Data Sheet

Model	MSA-F600	MSA-F800	MSA-F1000	MSA-F1200
Feeding Hopper(mm)	800×600	1300×800	1300×1000	1300×1200
Cutter Shaft Length(mm)	600	800	1000	1200
Discharge Height(mm)	490	565	565	565
Pusher Stroke(mm)	500	815	815	815
Rotor Knives Quantity(pcs)	23	35	45	55
Counter Knives Quantity(pcs)	4	4	4	6
Motor Power (kw)	18.5	37	45	55
Hopper Volume(L)	760	1500	1760	2030
Machine Size (mm)	1290×1820×1730	2800×1765×2080	2800×1980×2090	2800×2490×2135
Machine Weight(kgs)	1650	4000	4300	5300

Model	MSA-F1500	MSA-F2000	MSA-F2800
Feeding Hopper(mm)	1300×1500	1675×2000	1900×2000
Cutter Shaft Length(mm)	1500	2000	2800
Discharge Height(mm)	565	720	720
Pusher Stroke(mm)	815	1100	1100
Rotor Knives Quantity(pcs)	70	95	216
Counter Knives Quantity(pcs)	6	8	5+5
Motor Power (kw)	75	150	220
Hopper Volume(L)	2430	5500	6500
Machine Size (mm)	2800×2735×2135	3670×4374×2530	3705×5332×3146
Machine Weight(kgs)	5900	14500	21000
