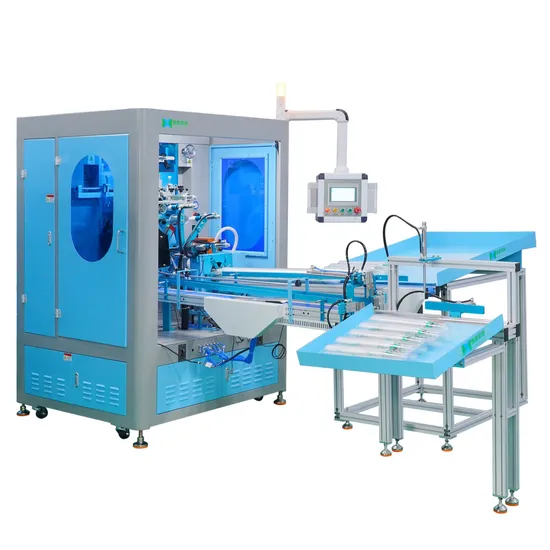

Full Automatic Screen Printing Machine for Plastic Paper Foaming Cup Screen Printer

Product Description

Full Automatic Screen Printing Machine for Plastic Paper Foaming Cup Screen Printer
Technical Parameters:

Max. Speed	4000 - 4500pcs/hr
Printing Size	350mmX200mm
Printing Diameter	50mm ~ 150mm
Printing Diameter ( 360 degrees printing )	100mm
Printing Product Length	200mm
Transverse Driven	Servo Motor
Turntable Driven	Servo Motor
360 degrees Driven	Servo Motor
RGB Sensor Search Driven	Servo Motor
Number of Print Head	1 pc
Number of Corona Treatment System	1 pc
Number of LED UV System	1 pc
Workstations:	8 PCS
Electrical Requirement	220V 1 Phase | 50/60Hz | 20A | 7KW
Air Consumption	5-7bar 100 L/min

Specifications:
1) Fully automatic, no need person to operate;
2) Locating automatically to keep printing precision;
3) No product no printing system, keep printing stable;
4) High and strong vacuum system for loading & UN-loading;
5) PLC and touch screen control system. Digital control system, can set parameter randomly, operate easily with big function;
6) The four angle of screen frame holder can be adjusted, keep the balance between screen frame and products, also make sure the layer of printing ink is even;
7) Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly;
8) With emergency switch to keep safe and stable;
9) Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency;
10) The loading system is rotary type with vacuum, keep fast and stable loading;
11) With optical sensor for multi colors printing;
Below photos for showing print process
Auto Loading - Corona Treatment - Locating by Cursor - Auto Printing - LED UV Dry - Auto UN Loading

Printed Samples ( Plastic Cups / Paper Cups / Foaming Cups )

---
