| Model | SP5200-16PFE2GE1GF-AI | ||
| Ports description | PoE port | 1-16ports:10/100M Auto-Negotiation RJ45 | |
| UPlinkport | 17-18port:10/100/1000M Auto-Negotiation RJ45 | ||
| 19 port:1.25G SEP | |||
| MAX POE output | 30W | ||
| Total power consumption | 200W | ||
| POE port priority | Support | ||
| LED indicators | PWR(Power indicator light),POE(POE indicator),Link/Act(Link/activity indicator) | ||
| Proccessing types | Store and forward | ||
| Transmission model | IEEE802.3Xfull-duplex and Backpressure half-duplex | ||
| Performance specification | Backplane bandwidth | 9.2Gbps | |
| Packet forwarding rate | 6.85Mpps | ||
| MAC address | 4k | ||
| Network standard | IEEE802.3i10BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab/z 1000 BASE-TX IEEE802.3x Flow Control IEEE802.3af Power overEthernet IEEE802.3at Power over Ethernet IEEE802.3az EEE | ||
| Flow Control | Back Pressure for half duplex,IEEE802.3x pause frame for full duplex | ||
| Thermal Fan | Fanless | ||
| ESD Protection | 4KV | ||
| Input volatage | AC100-240V 50/60Hz | ||
| Weight | 2Kg | ||

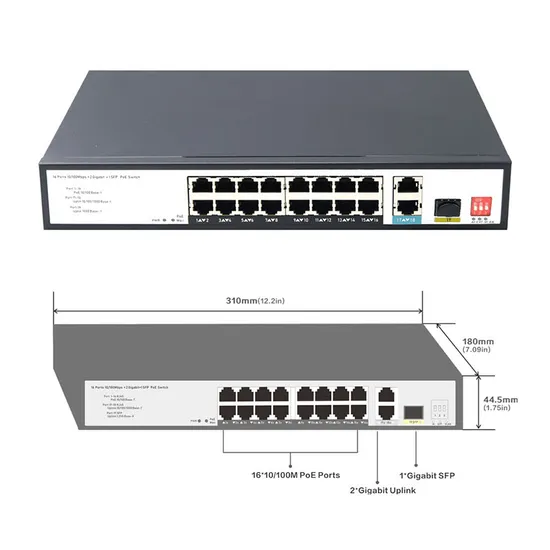

| Dimension(W×DXH) | 310mmx180mmx44.5mm(12.2inx 7.09inx1.75in) | ||
| Cable requirements | UTPcat5or abover | ||
| Environment specification | Operating temperature:-20ºC-55ºC,operating humidity:5%-95% | ||
| Storage temperature:-40ºC-75ºC,storage humidity:5%~95% | |||
| Safety | FCC Part15 Class A,CE.RoHs | ||
