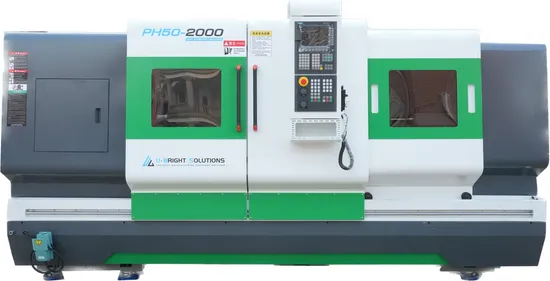

CNC Rotor Whirling Machine for The Screw Pumps

US$30,000.00-110,000.00 1 SET (MOQ)

Basic Info.

Model NO.
PH50-2000
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Controller
Syntec
Transport Package
Plywood Case
Specification
2700*1800*2000
Trademark
ubright
Origin
Cn
HS Code
8459619000
Production Capacity
400sets/Year

Product Description


Item
 PH46-750
 PH50-1000
 PH50-2000
Max machining length
 500mm
 750mm
 1750mm
Spindle RPM
 0-1500 rpm
 0-1200 rpm
 0-1200 rpm
Chuck size
 200mm(8")
 250mm(10")
 250mm(10")
(can be optional)
 (can be optional)
 (can be optional)
Indexing accuracy
 0.01°
 0.01°
 0.01°
Positioning accuracy
 0.015mm
 0.015mm
 0.015mm
Repeated accuracy
 0.01mm
 0.01mm
 0.01mm
Whirling head power
 4-3KW(110W2)
 4-4KW(150W2)
Whirling speed
 1000-2000rpm
 500-1000rpm
Helical angle range
 ±10°
 ±15°
Total power
 15kw
 16kw
 16kw
Machine weight
 2600kg
 3000kg
 3200kg
Machine size
 2300x1700x2000
 2700x1800x2000
 3200x1800x2000

PH80-1500
 PH80-2000
 PH80-3000
 PH80-4000
1250mm
 1750mm
 2700mm
 3700mm
0-800 rpm
 0-800 rpm
 0-800 rpm
 0-800 rpm
320mm(12")
 320mm(12")
 320mm(12")
 320mm(12")
(can be optional)
 (can be optional)
 (can be optional)
 (can be optional)
o.o1°
 0.01°
 0.01°
 0.01°
0.015mm
 0.015mm
 0.015mm
 0.015mm
0.01mm
 0.01mm
 0.01mm
 0.01mm
4-5.5KW(175W2)
 4-7.5KW(245W2)
400-700rpm
 300-500rpm
±15°
±20°
20kw
 22kw
 25kw
 26kw
3800kg
 4400kg
 5000kg
 5000kg
3700x2000x2200
 4400x2000x2200
 5200x2000x2200
 5200x2000x2200
Remarks:The machine will be customzied as per customers' requirements
