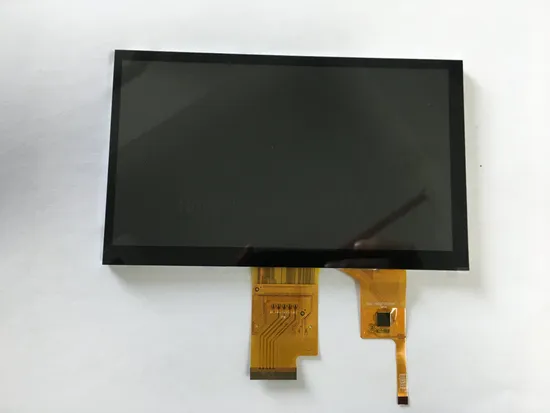

7inch 1024X600 800X480 IPS or 12 O′clock LCD Display 7 Inch TFT LCD Touch Panel

Product Description

7inch 1024x600 800x480 IPS or 12 O'clock LCD display 7 inch tft lcd touch panel Innolux's employees worldwide number more than 60,000, and its production sites and sales locations span the global.
With its major TFT plants located in Zhunan and Tainan, both in Taiwan, Innolux has also established overseas
module plants in the Chinese cities of Ningbo, Nanjing, Foshan, and Shanghai. Innolux's extensive global presence allows it to quickly provide a full range of services to its customers, reducing logistics and manpower costs, while achieving the environmental objectives of energy conservation and reduced carbon emissions. Innolux's unique intelligent management platform has not only enhanced the company's management capabilities, but also provides customers with prompt, accurate delivery information.
This is just one of the ways we are constantly striving to boost customer satisfaction.

Module number	AT070TNA2 V.1
Resolution	1024X600
Pixel pitch	0.05(W) × 0.15(H) mm
Active Area	153.6(W) × 90.0(H) mm
View angle	R/L/U/D 75/75/70/75(Deg)
Pixel Arrangement	RGB Vertical Stripe
Surface Treatment	Anti-glare
Electrical Interface	LVDS
Brightness	250(cd/m2)
Contrast ratio	500:01:00
Outline dimension	165.75(W) ×105.39(H) ×3.4(D) mm
Backlight	LED
Response time	25(ms)
Display mode	TN, Normally White, Transmissive
Operate temperature	-30-85(°C)
Storage temperature	-30-85(°C)
Display Colors	262k/16.7M(6 bit/ 6 bit + Dithering)
Power Consumption	1.90W(Typ.)
Power Supply Voltage	3.3v(Typ.)
Backlight lifetime	20k hrs(Min.)

ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY
Royal Display offers the original purchaser who has purchased a product from the royaldisplay.en.made-in-china.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
OUR SERVICE ADVANTAGES 1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
6. Got many good reviews from our customers.

---
