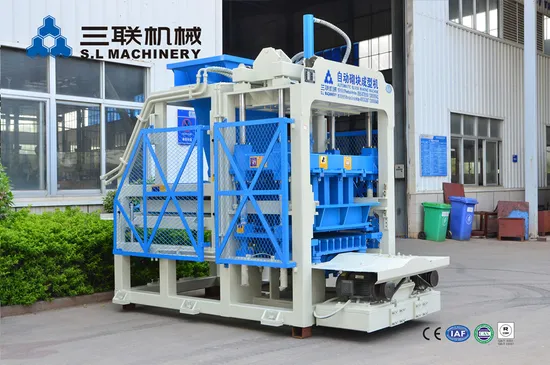

S. L Servo Brick Machine Automatic Blok Machine

Product Description

Product introduction
1. Raw material: Crushed stone, sand, cement, dust and coal, fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.
2. Applied products: Concrete blocks. Solid / hollow / cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, kerbstones, grass blocks, slope blocks, interlocking blocks etc.
3. Applied fields: Widely used in buildings, road pavers, squares, gardens, landscaping, city constructions etc.
Main technical parameters of block machine Q(F)T8-10
1) Exciting Force:100KN
2) Vibration Frequency: 0-60HZ
3) Total Power: 52.28KW
4) Molding Method: Automatic charging, vibrating and pressing
5) Control Mode: Full automatic PLC control
6) Pallet Size: 1220x900x25mm (bamboo pallet)
7) Molding Cycle: 15-20S (depend on material)
8) Brick No. /mold:

Model	Brick Size	Prodution(Per mould)	Production(8h one shift)	Pallet Size
Q(F)T8	Hollow Brick 390*190*190mm	8	11500pcs, 160m³	970*880mm
	Solid Brick 240*115*53mm	48	80000pcs, 117m³
	Paver 200*100*60/80mm	32	44000pcs, 880m²
Q(F)T10	Hollow Brick 390*190*190mm	10	14400pcs, 202m³	1220*900mm
	Solid Brick 240*115*53mm	62	100000pcs, 135m³
	Paver 200*100*60/80mm	40	52000pcs, 1000m²
Difference between different raw material and ratio

9)Frame Dimensions: 7500× 2500× 3020mm
10)Net Weight: 11T
11) Annual capacity: 300 days double shifts, hollow block 140, 000m3

---
