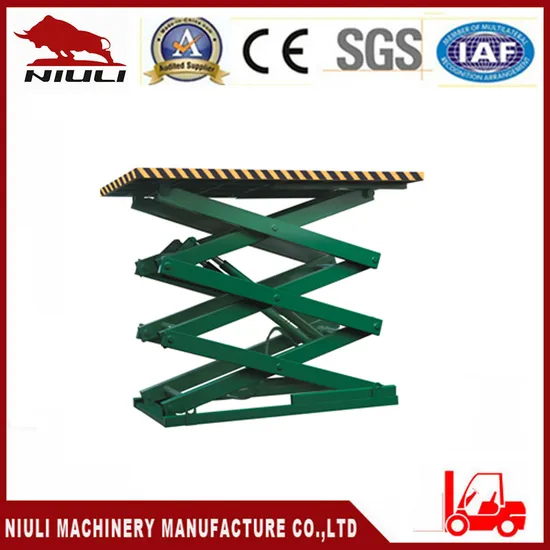

Niuli Lifting Machine Cargo Lift Equipment Platform Hydraulic Lift Table

Product Description

That product is the appropriation liquid that used for the different story high goods to deliver to press a working panel lifter, the main application warehouse, garage, the car puts a layer with various work etc. The story high piece the top and bottom goods transport. Have extensive applicability, load to have great capacity, ascend and descend a safety steady, install a maintenance in brief convenient, is layer in economic practical low building the ideal goods that act for elevator transport an equipments.
We can made different size and capacity lift table according your demands. You may tell us the detail specification as below:
1. Capacity?
2. Lifting height?
3. Platform size?
4. Choice Motor power? 380V/50Hz? Or 220V/50Hz Or other models?
5. Other demands?

Model	Capacity(kg)	Lifting height H2(mm)	Rated height(mm)	Lift Height(mm)	Platform size(mm)	Elevating time(s)	Motor power(kw)	Self weight (kg)
SJG1-1.7	1000	1700	2160	460	2500x2000	30	2.2	1200
SJG2-1.7	2000	1700	2180	480	2500x2000	30	3.7	1400
SJG3-1.7	3000	1700	2180	480	2500x2000	30	3.7	1600
SJG5-1.7	5000	1700	2280	580	2800x2000	30	7.5	2000
SJG10-1.7	10000	1700	2500	800	4000x2000	30	7.5	3000
SJG1-3	1000	3000	3540	540	2000x2000	30	2.2	1300
SJG2-3	2000	3000	3600	600	2000x2000	30	3.7	1600
SJG3-3	3000	3000	3600	680	2000x2000	30	3.7	1800
SJG1-4	1000	4000	4680	740	2000x2000	40	2.2	1500
SJG2-4	2000	4000	4740	800	2000x2000	40	3.7	1800
SJG3-4	3000	4000	4800	800	2000x2000	40	5.5	2000
SJG1-5	1000	5000	5800	880	2000x2000	60	2.2	1700
SJG2-5	2000	5000	5880	960	2000x2000	60	3.7	2100
SJG3-5	3000	5000	5960	1020	2000x2000	70	5.5	2500
SJG1-6	1000	6000	7020	1120	2000x2000	70	3.7	2000
SJG2-6	2000	6000	7120	1280	2000x2000	70	5.5	2500
SJG3-6	3000	6000	7120	1520	2000x2000	100	5.5	3000
SJG1-9	1000	9000	10280	740	2500x2000	120	5.5	3500
SJG2-9	2000	9000	10520	800	2500x2000	50	7.5	4800
SJG4-4	4000	4000	4740	880	4500x2000	60	5.5	3500
SJG4-5	4000	5000	5880	1120	6000x2200	60	5.5	4000
SJG5-5.5	5000	5500	6380	600	6000x2200	60	7.5	5000

---
