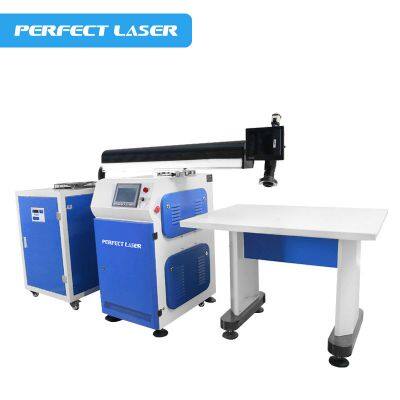

600W 3d SS Aluminum advertising logo Channel Letter YAG Laser Welder

Product Details

Product Description

Product Description
Features:
1.Laser head can electrically move back and forth, up and down, left and right and rotate 360 degree.
2. Heat affected zone of the stainless steel laser welding machine is small. The aluminum and stainless steel laser welding machine's work piece surface will not deformed.
3. For letters in the advertising industry, there is specially lengthened optical path and the telescopic scope can be added to 550mm.
4. There is no raised spot after welding. The aluminum and stainless steel laser welding machine doesn't need polishing process. Saving time and labor. The appearance is beautiful and tight.
5. The aluminum and stainless steel laser welding machine has optional CCD monitor. The welding effect is more clear and intuitive.
6. The specially designed aluminum and stainless steel letter laser welding machine's long focal distance lens F=200 mm to meet the demand for ultra-high font welding.
Technical data:

Product Name	Advertising Letter Laser Welding Machine
Model	PE-W600
Laser Medium	Nd3+:YAG
Laser Power	600W
Laser Wavelength	1064nm
Pulse Width	0.3-20ms
Pulse Frequency	0.5-40HZ
Welding Spot Diameter	0.2-2mm
Filler Wire Diameter	0.1-0.5mm
Power Consumption	9KW 40A
Power Supply	AC380V+5% Three Phase
Operation Interface	LCD Touch Screen with English
Locating System	CCD screen + red light pointer
Cooling Typed	Water Cooling
Standard work table	800×1000mm
Laser Lamp	Double Lamp
Welding depth for SS	2mm
Welding depth for Aluminum Alloy		Single Power Energy	120J

---
