95 Porcelain Through Wall Sleeve Dedusting Insulator Porcelain Sleeve

Product Description

DESCRIPTION

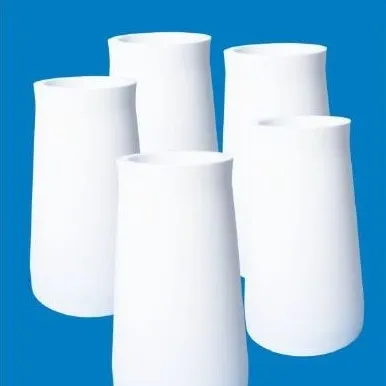

High voltage insulating porcelain sleeve:
Porcelain sleeve belongs to the electrostatic precipitator accessories one of the important products, porcelain sleeve, also known as electric porcelain sleeve, according to the shape of the product can be divided into straight porcelain sleeve, conical porcelain sleeve and shaped porcelain sleeve, used for corona pole hanging frame boom through the field shell at the sealing and insulating protection of a kind of porcelain insulator.
SPECIFICATION

Model	Sketch	Size (mm)
		D	d	H	δ
GZT370-600	a	370	270	600	25~30
GZT-370-700		370	270	700	25~30
GZT465-600B		465	270	600	25~30
GZT487-610		487	425	610	25~30
GZT460-400	b	460	330	400	25~30
GZT487-700		487	264	700	25~30
GZT520-600		520	330	600	25~30

APPLICATION
Porcelain insulators for electrostatic precipitator porcelain sets in the electrostatic precipitator in a wide range of roles, 50 porcelain porcelain sets of the working temperature of 250 ºC, 95 porcelain sets of the working temperature of ≤ 600 ºC, the working voltage of 72KV ~ 120KV, resistance to compressive damage load of ≥ 1000KV, the installation of the location of the altitude of not more than 1,000 meters above sea level in the working environment.
The inner and outer surfaces are enameled with white or brown enamel, and the two end surfaces are ground. In the power system and electrical equipment in a very wide range of applications, for the different potential of the conductive body in the mechanical connection with each other, while in the electrical insulation from each other.
95 Porcelain bearing sets are used as cathode rod support for electrostatic precipitator, which have advantages of high temperature resistance, high insulating property and high mechanical strength, which cannot be achieved by common electric porcelain and quartz products.
OUR ADVANTAGE
1. RICH EXPERIENCE
25 years'experience in the production of comprehensive Specialty Ceramics and many intellectual property rights.
2. ADVANCE EQUIPMENT AND STRONG TECHNICAL FORCE
Our company has developed a full range of insulators for electric dust collectors, including support bushings, shafts, side vibration shafts, wall bushings, tie rods, pillars, etc. The company has an independent 95 porcelain ceramic production line and perfect follow-up processing capabilities.
We have independent 95 porcelain ceramics production line and perfect follow-up processing capacity, the equipment has spray drying tower, dry pressure molding machine, high pressure isostatic pressure molding machine, high temperature firing furnace, CNC machining equipment, grinding and polishing machine, with perfect physical and chemical performance testing, insulation testing, sealing performance testing system.
3. CERTIFICATION
In 1996, we passed 1S09001:1994 quality system certification;
In 2016, we passed 1S09001:2015 quality system certification;
In 2016, we passed 1S014001:2015 environmental protection system certification.

---
