ABS+PC Optical Distribution 1X8 FTTH Optic Fiber Termination Box 5%off

Product Description

Product Description
Fiber to the home (FTTH) infrastructures make network organizers adopt powerful management and planning systems, FTTH termination box is a small part of this system and provides a cost-effective solution for FTTH applications.
FTTH Termination Box available for the distribution and terminal connection for various kinds of optical fiber system, Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use.They are of light and compact design, Mainly used in fiber optic drop cable, pigtails or splitters cablings in residential buildings area. Most of them are applied to wall mounted type. The capacity is optional, such as small single fiber distribution box, 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 16 ports, 24 ports or even high density fiber distribution requirements.

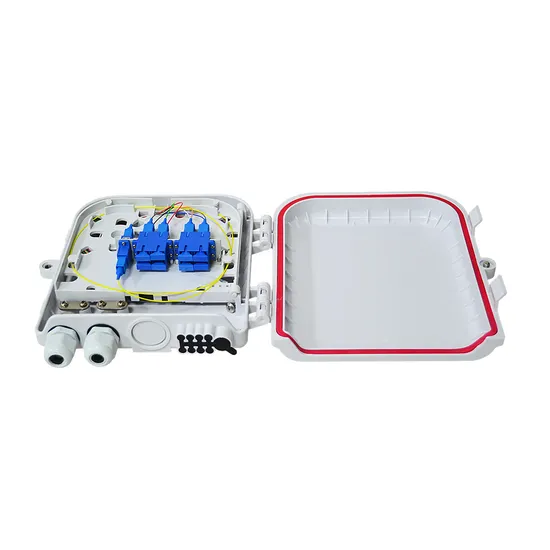

Fiber equipment 8 port drop cable optic terminal box outdoor wall mounted FTTH fiber distribution box
APPLICATION
1. widely used in FTTH access network.
2. Telecommunication Networks
3. CATV Networks
4. Data communications Networks
5. Local Area Networks
FEATURES
1. Industry Standard User Interface, be made of high impact plastic.
2. Can accommodate 1x4 & 1X8 PLC splitter.
3. Anti-UV, Ultra violet resistant and rainfall resistant.
4. Up to 8 FTTH drops.
5. Wall and pole mountable.
6. 2 inlet ports, 8 outlet ports.
7. Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.
8. Job stress: 70 kpa to 108 kpa;
9. Using the temperature:- 40 ~ + 60 ºC
10. Relative humidity: ≤95% (+ 40 ºC).
11. Protection grade: IP55.

Model	Capacity	Size
FTTH-004	8 port	200mm(W)x215mm(H)x54mm(D)

Product Name	Specifications	Quantity
Box	FTTH-004	1 PC
Optical fiber heat shrinkable casing	Ф1.5×40mm	8 PCS
To protect the casing	Φ5	1.5 M
Nylon cable tie	3×100mm	6 PCS
Expansion bolt	M8×40mm	4 EST
Key		1 PC

Company Profile
FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

---
