Basic Info.
Model NO.
Speaker Cable RoHS
Usage
Mobile Phone, Portable Player
Special Function
With Remote Control, Memory Card Support
Compatible Product
Universal
Specification
300x300x100
Production Capacity
3000000m/Month
Product Description

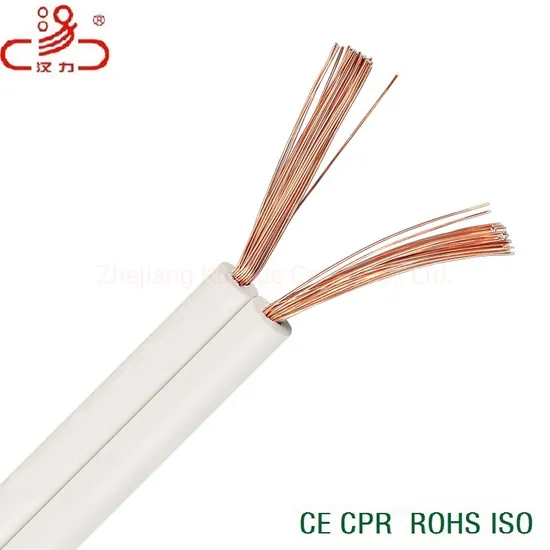

Speaker Cable 0.75mm, 1.0mm, 1.5mm, 2.5mm Speaker Cable
Slim Copper Conductor Stranded Wire, RVB Type Audio Cable
Products model:
BVR wire cable
1, multiores pure copper conductor
2. Pvc insulated, with or without steel armor, pvc shielded
3. High quality, ISO 9001, CCC, CE, ROHS certified
4. OEM is available.
1. Standard
Cables will be produced as per Chinese National Standard GB/T12706.2-12706.3 equivalent to IEC 60502
2. Application
This product is suitable for using in rated voltage from 6/6kV to 26/35kV system transmission and distribution lines. Based on different sheath structures, it can be used for laying in the air and underground.
3. Description and Installation Place
| model( size) | Specification Description | Insulation Out Dia. | Jacket/sheath
Material Colour |
| (mm) |
| 0.35mm2 | 2CX20/0.15mm | O. D: 2.0X4.0 | PVC/Transparent or any |
| 0.5mm2 | 2CX28/0.15mm | O. D: 2.2X. 4.4 | PVC/Transparent or any |
| 0.75mm2 | 2CX42/0.15mm | O. D: 2.4X4.8 | PVC/Transparent or any |
| 1.0mm2 | 2CX57/0.15mm | O. D: 3.0X6.0 | PVC/Transparent or any |
| 1.5 mm2 | 2CX85/0.15mm | O. D: 3.6X7.2 | PVC/Transparent or any |
| 2.5mm2 | 2CX7X20/0.15mm | O. D: 4.2X8.4 | PVC/Transparent or any |
| 4.0 mm2 | 2CX7X32/0.15mm | O. D: 5.0X10.0 | PVC/Transparent or any |
| 6.0mm2 | 2CX7X48/0.15mm | O. D: 5.5X11.0 | PVC/Transparent or any |
| AWG SIZE |
| model( size) | Specification Description | Insulation Out Dia. | Jacket/sheath (MaterialColour) |
| (mm) |
| 24AWG | 2CX18/0.12mm | O. D: 1.8X3.6 | PVC/Transparent or any |
| 22AWG | 2CX18/0.15mm | O. D: 2.0X4.0 | PVC/Transparent or any |
| 20AWG | 2CX29/0.15mm | O. D: 2.2X4.4 | PVC/Transparent or any |
| 18AWG | 2CX46/0.15mm | O. D: 2.5X5.0 | PVC/Transparent or any |
| 16AWG | 2CX74/0.15mm | O. D: 3.0X6.0 | PVC/Transparent or any |
| 14AWG | 2CX118/0.15mm | O. D: 3.5X7.0 | PVC/Transparent or any |
| 12AWG | 2CX187/0.15mm | O. D: 4.5X9.0 | PVC/Transparent or any |
| 10AWG | 2CX297/0.15mm | O. D: 5.5X11.0 | PVC/Transparent or any |
Our Services
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.19 years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
Contact:
Name: Carey zhu
Website: http://kuayuecable.en.made-in-china.com http://kuayuecable.en.made-in-china.com
>>
