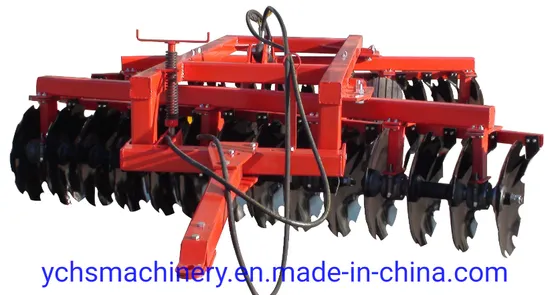

Farm Machinery Heavy Duty Disc Harrow

Product Description

1BZ series hydraulic heavy disc harrow is well suitable for heavy clay soil, waste land and weedy field as well,mainly suitable for stubble cleaning before farming , it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow.Technical Specification
• This hydraulic heavy duty disc harrow is trailed for 70-180hp tractor.
• Own hydraulic system to lift and down the transport wheel freely.
• High quality of difunctional oil cylinder.
• Compact and strong structure make the machine have long service life.
• Widely working width of this heavy disc harrow to be 1.8-5.3m.

Model	Unit	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-5.3
Working width	mm	1800	2200	2500	3000	3400	4000	5300
Working depth	mm	200
Q'ty of disc		16	20	24	28	32	36	48
Total weight	kg	1160	1250	1350	1430	1550	1900	2500
Matched power	hp	70	80	90	100	120	150	180
Linkage		Trailed(trailed hole diameter 38mm); hydraulic output in 1 type(difunctional oil cylinder),oil connection in 1/2" thread

Products Show
FAQ Q1: Are you a factory or trading company? We are a factory with self-supported import and export right.
Q2: How can I trust on your company? We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout is the pledge we to each customer.
Q3: Where is your factory located? How can I visit there? Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website? It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
Q5: How can I make the payment? Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice.
30% as prepayment and the balance when the goods are ready for shipping.
Irrevocable L/C at sight could be also accepted.
Q6: What's the Payment terms? FOB, the price of the implement without sea shipment costs.
CIF, including the unit cost + marine insurance + Shipment charges to your destination port.
CFR, including the unit cost + Shipment charges to your destination port.
Q7: At which port do you usually ship the good? We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China.
Q8. How about the Warranty ? 12 months warranty from the time of the goods arrive at destination.

---
