Paper Making Machine Mill Industry Rubber Adjusting Customized Air Spring Bellow

Product Description

Product Description

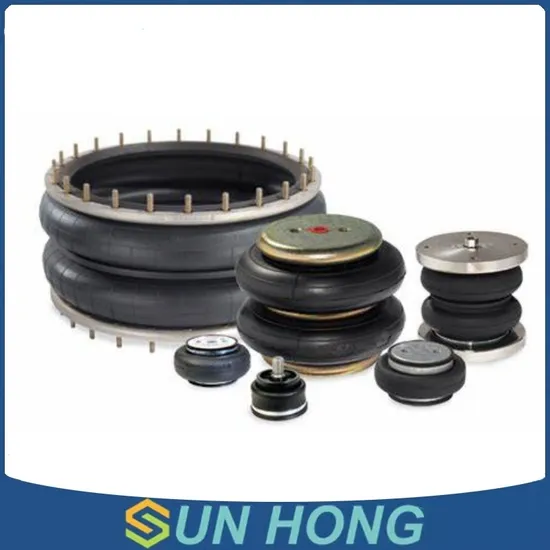

The air spring is located in different areas of the paper production process. Air springs consist of a flexible elastomer rubber body with nylon fabric reinforcement, and rustproof plates with an air inlet and mounting blind nuts. The rubber bellows can be used both as vibration isolators and rubber actuators. The air springs absorb up to 99% of the unwanted vibrations avoiding further damages to the machines and metallic structures. At the same time, they reduce noise level. Application
The Air springs are applied in different kind of applications in paper mills, where we can see the different functions that the air actuator provides in different parts of the paper manufacturing process:
1.Air spring used as an edge control system to align the bandage that carries the paper.
2.Tenses the web that carries out the paper.
3.Used as a press, to extract the humidity from the paper with the rollers located in the machine.

Principle
One requirement of air springs for paper machine is shock absorption and the other is stroke control.
By adjusting the compressed air pressure into the air spring, the height of the air spring decreases, the volume of the inner chamber decreases, the stiffness of the spring increases, and the effective bearing area of the air column in the inner chamber increases, and the bearing capacity of the spring increases. When the vibration load decreases, the spring height increases, the cavity volume increases, the spring stiffness decreases, the effective bearing area of the air column decreases, and the bearing capacity of the spring decreases.
In this way, the height of air spring, the volume of inner cavity and the bearing capacity of air spring have smooth flexible transmission and high efficiency control of amplitude and vibration load with the increase and decrease of vibration load. The stiffness and bearing capacity of the spring can also be adjusted by increasing or decreasing the air charge.
Advantages
1.Lower cost;
2.Maintenance cost savings, no moving parts, no sealing parts, no friction between parts;
3.No mantenance or lubrication required;
4.Reduced space requirement;
5.Angular capability. Product Parameters

SH80-01		SH160-01		SH400-01
Maximum load	88kg	Maximum load	1251kg	Maximum load	8958kg
Maximum Diameter	80mm	Maximum Diameter	175mm	Maximum Diameter	430mm
Natural Diameter	80mm	Natural Diameter	160mm	Natural Diameter	400mm
Minimum compression height	40mm	Minimum compression height	74mm	Minimum compression height	82mm
Maximum elongation height	70mm	Maximum elongation height	190mm	Maximum elongation height	247mm
Component weight	0.1kg	Component weight	1kg	Component weight	4.9kg

Quality Inspection
Our engineers are inspecting the finished air spring.
Sun Hong Group
Sun Hong Group is a company specializing in serving the pulp and paper industry by manufacturing quality equipment and provide technical support to help customers solve various problems in production. Our aimis to help our customer improve production efficiency and reduce energy consumption.
Own factory equipped with high-precision CNC machine tools and machining centers, advanced equipments and instruments, which can fully guarantee the stability and reliability of the products. There we can offer you the best quality at the most competitive prices.

---
