Precision Metal CNC Lathe Machine Ck6140 Horizontal Flat Bed CNC Turning Lathe

Product Description

The CK6140 horizontal lathe features an integrated bed with high efficiency, precision,rigidity,minimal thermal deformation,low spindle temperature rise,low vibration,and high cutting torque,making it suitable for heavy-duty cutting.
The spindle's three-point structure ensures stable transmission for machining disc,sleeve,and shaft parts.With a speed of 1600 rpm,it can turn various surfaces and threads,achieving a surface roughness of Ra1.6µm.
The lathe has a four-position automatic tool post for continuous machining,a compact and user-friendly design,and offers various configurations.
It is suitable for light industry,medical, automotive,and motorcycle parts industries.

Product Parameters

	ITEM	CK6140
	CNC system	GSK
Scope of work	Max. turning diameter of the bed	Φ420
	Max. turning diameter through sliding plate	Ф210
	Max. travel of X-axis	295mm
	Max. travel of Z-axis	750mm
Bed	Width of bed guide rail	335mm
	Max. centricity	750mm integral bed foot
Principal axis	Spindle series	A2-6
	Spindle inner hole taper	MT6#
	Spindle bore diameter	Ф58mm
	Max. spindle speed	200-3200 rpm
	Main motor power	7.5 kW
	Manual collet size	Three-jaw chuck 250mm
Servo shaft	X/Z-axis screw model	2505/3210
	X/Z-axis motor torque	6/10 Nm
Working accuracy	X/Z axis rapid speed	6/8 m/min
	Accurate positioning	X-axis≤0.01mm,Z-axis≤0.015mm
	Repetitive positioning accuracy	X-axis≤0.0075mm,Z-axis≤0.010mm
	Roundness	≤0.007mm
	Diameter uniformity	≤0.003mm/length300mm
	Flatness	≤0.002mm/length300mm
	Surface roughness(steel parts)	≤Ra1.6um
Servo shaft	Form	Four-position tool holder
	Square cuttle	25*25mm

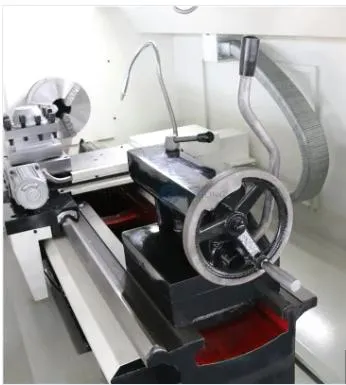

Tailstock	Tailstock diameter	Φ65mm
	Tailstock travel	150mm
	Tailstock center taper	MT4#
General rule	Power specification(standard configuration)	Three-prase 380V/50Hz
	Overall dimension	2200*1400*1700mm
	Machine net weight	1700kg

---
