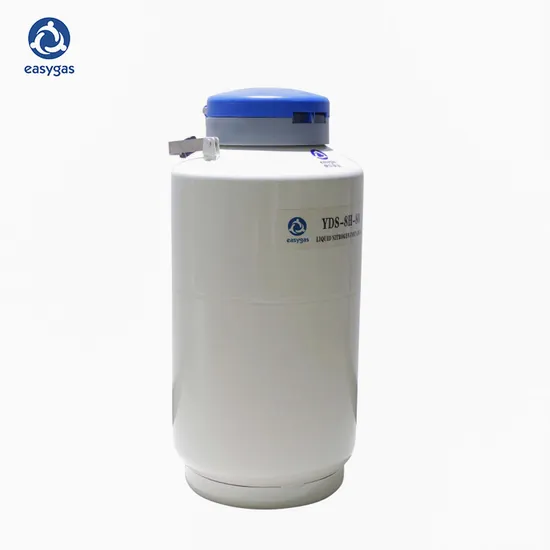

Liquid Nitrogen Container Cryogenic Storage Cell Tissue Samples Vaccine Embryo Yds-10

Product Description

Cryogenic dewar flask Liquid Biological Nitrogen Conainer Dewar Tank for Storage and Air Transportation Product Description
Dry Tansport High strength and low weight aluminum construction, strong and durable Freeze box storage Low temperature absorbent Lower than the national standard evaporation rate of liquid nitrogen, no liquid nitrogen overflow 30-Year design life, three-year vacuum warranty
Liquid Nitrogen Container Use and Maintain When putting in and taking out frozen substances, try to short the opening time of the liquid nitrogen biological container that can reduce the amount of liquid nitrogen loss, and do not take out the inside canister completely to affect the storage effect of the items. Strictly prevent excessive impact and collision. Always check the weight of the liquid nitrogen biological container, and know in time how many days the liquid nitrogen can be used. When the liquid nitrogen amount is reduced to 1/3 of the total capacity, the liquid nitrogen is immediately replenished to avoid necrosis of stored items. It was found that there was sweating or tarnishing around the neck of the liquid nitrogen biological container which proved that the vacuum degree of the liquid nitrogen biological container has deteriorated and can no longer be used. It should be replaced immediately.

Liquid Nitrogen Container Clear and Dry It is best to wash the liquid nitrogen biological container 1-2 times a year. Take out canister and liquid nitrogen from container to place about two days, the temperature of inner container will rise to around 0ºC. Inject warm water of 40-50ºC to the liquid nitrogen container, then scrub with a cloth. Invert the liquid nitrogen biological container and dry it. It can be dried by natural air drying and hot air. If it is dried by hot air, the temperature should be limited to 40-50ºC. Avoid hot air above 60ºC. Nitrogen is immediately replenished to avoid necrosis of stored items. Liquid Nitrogen Container Operate Attention The container which was used for a period of time or the new one must be tested for liquid nitrogen performance. While using, the containers should be checked every day. If there is water drops or frost on the upper, there is quality issue in the liquid nitrogen biological container,it should be stopped using immediately. The containers should be placed in a cool and dry place. It is strictly forbidden to place the liquid nitrogen container in the room to close the door or window. The liquid nitrogen temperature is -196ºC, and the operator should take care to prevent the liquid nitrogen from freezing the skin. Product Parameters
Air transport series:

Model		YDH-3	YDH-6-80	YDH-8-80	YDH-10-125	YDH-25-216
Product performance
Volume (L)		3	6	8	10	25
Caliber (mm)		50	80	80	125	216
Liquid nitrogen absorption volume		3	2.9	6.6
Static evaporation (L/D)		0.12	0.3	0.22	0.5	0.96
Static reservation (d)		25	20	30	23	29
Storage Capacity
Cylinder canister	Outer diameter (mm)	38	63	63	97	-
	Height (mm)	120	120	276		-
	Number (ea)	1	1	1	1	-
	Number of straws 0.5ml (ea)	132	820	1640	1508	-
	Number of straws 0.25ml (ea)	298	1780	3560	3322	-
Square Racks	Number of square racks (ea)	-	-	-	1	1
	Size of racks (ea)	-	-	-	82*84	142*144
	Size of boxes (mm)	-	-	-	76*76	134*134
	layers of racks (ea)	-	-	-	4	5
	Number of Inner spiral tube (2ml)	-	-	-	100	500
For blood bag of 25ml	Number of Racks (ea)	-	-	-	1	-
	Layers of racks (ea)	-	-	-	2	-
	Number of each line (ea)	-	-	-	3	-
	Number of blood bags (ea)	-	-	-	6	-
For blood bag of 50ml	Number of Racks (ea)	-	-	-	1	-
	Layers of racks (ea)	-	-	-	1	-
	Number of each line (ea)	-	-	-	3	-
	Number of blood bags (ea)	-	-	-	3	-
Container size
Total height (lock cover included) (mm)		478	482	630	560	755
Outer diameter (mm)		224	300	300	300	398
Empty weight (kg) (canister excluded)		3.5	5.62	7.2	7.6	16
Empty weight (kg) (canister included)		3.56	6.06	7.33	8.22	19.4
Accessory
Lock cover		√	√	√	√	√
Protection leather		√	√	√	√	√
Canisters		standard 1 piece canister- φ38mm,120mm	standard 1 piece canister-φ 63mm,120mm	standard 1 piece canister-φ 63mm,276mm	standard 1 piece square bucket-4 layers	standard 1 piece square bucket-5 layers

Laboratory series:

Model		YDS-10-125	YDS-30-125	YDS-35-125	YDS-47-127	YDS-50B-125	YDS-65-216	YDS-95-216	YDS-115-216	YDS-145-216	YDS-175-216
Product performance
Volume (L)		10	30	35	47	50	65	95	115	145	175
Caliber (mm)		125	125	125	127	125	216	216	216	216	216
Static evaporation (L/D)		0.42	0.33	0.36	0.45	0.45	0.89	0.95	0.95	0.95	0.95
Static reservation (d)		24	90	97	105	110	73	100	121	152	184
Storage Capacity
Storage specifications		5*5					10*10
Square racks	Number of square Racks (ea)	1	6	6	6	6	6	6	6	6	6
	Size of Racks (ea)	82*84	82*84	82*84	82*84	82*84	142*144	142*144	142*144	142*144	142*144
	Size of boxes (mm)	76*76	76*76	76*76	76*76	76*76	134*134	134*134	134*134	134*134	134*134
	Layers of Racks (ea)	4	4	5	5	6	4	5	6	8	10
	Number of 2ml Inner spiral tube (ea)	100	600	750	750	900	2400	3000	3600	4800	6000
For blood bag of 25ml (single)	Number of racks (ea)	-	-	-	-	-	30	30	30	30	30
	Layers of Racks (ea)	-	2	2	2	3	2	2	3	4	5
	Number of blood bags (ea)	-	36	36	36	54	60	60	90	120	150
For blood bag of 25ml (parallel)	Number of racks (ea)	-	7	7	7	7	7	7	7	7	7
	Layers of Racks (ea)	-	2	2	2	3	2	2	3	4	5
	Number of boxes in each layer (ea)		4	4	4	4	10	10	10	10	10
	Number of blood bags (ea)	-	56	56	56	84	140	140	210	280	350
For blood bag of 50ml (single)	Number of racks (ea)	-	-	-	-	-	-	30	30	30	30
	Layers of Racks (ea)	-	-	-	-	-	-	2	3	4	5
	Number of blood bags (ea)	-	-	-	-	-	-	60	90	120	150
For blood bag of 50ml (parallel)	Number of racks (ea)	-	-	-	-	-	-	7	7	7	7
	Layers of Racks (ea)	-	-	-	-	-	-	2	3	4	5
	Number of boxes in each layer (ea)	-	-	-	-	-	-	8	8	8	8
	Number of blood bags (ea)	-	-	-	-	-	-	112	168	224	280
Container size
Total height (lock cover included) (mm)		581	702	735	709	815	761	802	952	1010	1072
Outer diameter (mm)		300	450	450	498	498	678	678	678	678	678
Empty weight (kg) (canister excluded)		7.6	16.72	18.6	20.5	21.5	41	47	50.5	53.9	57.5
Empty weight (kg) (canister included)		8.22	20.46	23.04	23.5	26.63	43.7	50.2	70.4	74.7	78.1
Accessory
Lock cover		√	√	√	√	√	√	√	√	√	√
Protection leather		√	√	√	√	√	√	√	√	√	√
Canisters		standard 1 pc	standard 6 pcs	standard 6 pcs	standard 6 pcs	standard 6 pcs	standard 6 pcs	standard 6 pcs	standard 6 pcs	standard 6 pcs	standard 6 pcs
Carrying cart		Optitional	Optitional	Optitional	Optitional	Optitional	Optitional	Optitional	Optitional	Optitional	Optitional

Portable series:

Model		YDS-2-30	YDS-2-35	YDS-3	YDS-6	YDS-10	YDS-10-80
Product performance
Volume (L)		2	2	3	6	10	10
Caliber (mm)		30	35	50	50	50	80
Static evaporation (L/D)		0.08	0.08	0.12	0.12	0.12	0.21
Static reservation (d)		25	24	25	50	83	48
Storage Capacity
Outer diameter of canister (mm)		19	25	38	38	38	63
Height of canister (mm)		120	120	120	120	120	120
Number of canister (ea)		3	3	6	6	6	6
Number of straws (single layer)	0.5ml (ea)	90	165	792	792	792	2244
	0.25ml (ea)	204	330	1788	1788	1788	5022
Number of straws (double layers)	0.5ml (ea)	─	─	─	─	─	─
	0.25ml (ea)	─	─	─	─	─	─
Container size
Total height (lock cover included) (mm)		415	429	445	482	563	568
Outer diameter (mm)		225	225	225	300	300	300
Empty weight (kg) (canister excluded)		3.8	3.1	4.07	5.62	6.29	6.8
Empty weight (kg) (canister included)		3.93	3.24	4.45	6.06	7.01	7.52
Accessory
Lock cover		√	√	√	√	√	√
Protection leather		√	√	√	√	√	√
Canisters		standard 3 pcs	standard 3 pcs	standard 6 pcs	standard 6 pcs	standard 6 pcs	standard 6 pcs

Product Applications

Liquid nitrogen biological containers are often used for long-term low-temperature storage and transportation of poultry semen freezing and vaccines, cells, microorganisms and other refrigerants using liquid nitrogen as refrigerant. They are widely used in animal husbandry bureau, farm, university, scientific research institute, medical treatment, national defense, machinery, electronics, metallurgy, food, industry, energy and other industries.
Other Products

Cryogenic Storage Tank

gas cylinder

SO2

instant freezer

Ethylene

liquid nitrogen container

Company Profile
Shandong Yizhong Industrial Co., Ltd. stands as a leading force, providing a full spectrum of essential industrial gases, state-of-the-art equipment, and unparalleled applications expertise. Our products serve a multitude of sectors, including refining, chemical, metals, electronics, manufacturing, food preservation as well as beverage industry.With a relentless focus on research, development, and production, Yizhong Industrial epitomizes excellence in the realm of industrial gases and equipment. Our unwavering commitment to a safety-first ethos ensures that we deliver unparalleled service quality, propelled by a desire to exceed our customers' expectations.

Cooperation


Packaging & Shipping
FAQ
Q1: What products can I order from your company?

A1: We specialize in industrial gas and relevant equiment, such as cryogenic liquid storage nitrogen tank, liquid nitrogen doser, liquid nitrogen freezer, respirator ect. We can also provide cryogenic storage technology.

Q2: What is your production standard?

A2: GB/ISO 9001 Quality Certificate.

Q3: Can you do custom-made?

A3: OEM,ODM welcome.
1) Silk print your logo on your box
2) Customized color box
3) Design and produce based on your idea and draft

---
