Product Description
Product Description

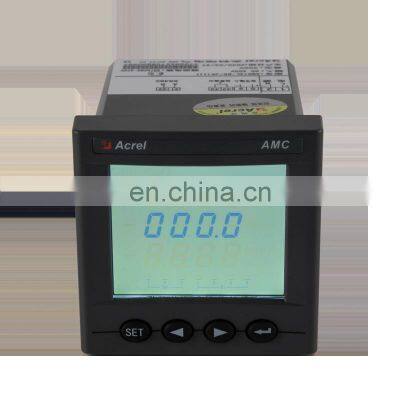

DC Digital Voltmeter AMC72L-DVProducts DescriptionAMC series programmable intelligent meters,adopting AC sampling technology,can directly or indirectly measure electric voltage and current of single phase or three phase grid. It can be used for local display,and connecting industrial control device to form measuring control system. This series of meters have RS-485 port,adopt Modbus-RTU protocol. Analog output,alarm output,switching input/output can be selected. Based on different request,by pressing the keys,parameters of ratio,alarm,communication etc. can be modified.● Measurement: 1-circuit DC Voltage ● Accuracy: 0.5%● Rated Current: 0~10V DC (via Transducer); 300V or 1000V DC (direct connect) ● Power Supply: 85~265V AC/DC● Alarm Output: Low&High Current Alarm● Analog Output: 4~20mA DC● Standard&Certificate: CE Certificates● DI/DO Function: 2-channel DI&2-channel DO optional● Communication: RS485 (MODBUS-RTU) optionalTechnical Parameter1. Function OverviewFunctionDescription&ValueMeasurementThree-phase AC kWh, kVarh, Active Power, Reactive Power, Forward&Reverse Power, Current, Voltage, Zero Sequence Voltage, Zerosequence Current, Voltage-phase Angle, Voltage&Current Unbalance, Power Factor,Harmonic, FrequencyDisplayLCD displayCommunication(Optional)RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity)Baud Rate 1200~38400 bps etc.Alarm Output(Optional)1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC,Used for high,low,unbalance alarm etc.Analog Output(Optional)1~5V DC or 4~20mA DCDI/DO Switching(Optional)DI (Digital input): 2-channel or 4-channel dry contact digital input with built in power supplyDO (Digital output): 2-channel digital output with NO relay contact. Capacity: 3A/30V DC,3A/250V AC2. Main ParametersParameterDescription&ValueInputRated VoltageAC Voltage Input: 400V AC L-L (via direct connetion); 100V AC L-L (via -/100V AC PTs)Rated CurrentAC Current Input: 5A AC or 1A AC (via -/5A AC or -/1A AC CTs)OverloadCurrent&Voltage input overload:1.2 times rated value(continuous); 10 times rated value /1 secondFrequency45~65HzPower ConsumptionPower consumption of each current&voltage input circuit is less than 0.5VAMeasuring AccuracyVoltage0.2%Current0.2%Active Power0.5%Reactive Power1.0%kWh0.5%kVarh1.0%Frequency±0.05HzHarmonic±1%Power SupplyVoltage Range 85-265V AC/DC; 24V or 48V DC (±20%)Power Consumption≤10VAInsulation resistance≥ 100MΩPower frequency withstand voltageBetween Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switchinginput AC 2 kV 1min;Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min;Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min;3. EnvironmentConditionDescription&ValueTemperatureOperation: -25℃～+65℃; Storage: -40°C ~+80°CHumidity≤95%RH,no condensation,without corrosive gasAltitude≤ 2500mWiring IllustrationDC Voltage Signal (0~10V DC) Input via -/10V DC TransducerDC Voltage Signal (300V DC) Input via direct ConnectionDC Voltage Signal (1000V DC) Input via direct ConnectionDimension & InstallationCertificationCompany ProfileFAQ
>>
