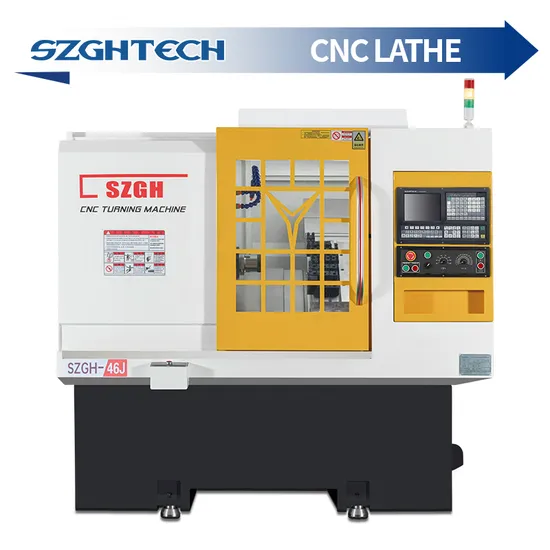

Szgh-46 CNC Turning Lathe Dual Spindle CNC Treiping 5 Axis Lathe Machine

Product Description

Product Otherview
SZGH High Precision SmaMetal Lathe CNC Machinery Machine Tool Lathe Grinder Milling Machine For Wood Portable Line Mini Grinding
SZGH-46J is suitable for batch production of copper, iron, aluminum and stainless steel bars within 45mm, and batch production of open-type forged parts with automatic feeding of pellets within 60mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 350mm. Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6. It is widely used in the processing of large parts with high precision and rigidity. Through careful design and matching, the performance of each accessory can be fully utilized to achieve the best cost-effective ratio.
Standard Configuration

Technical parameter item		Unit	Standard value	Max value
Processing capacity	Max. diameter of bar bore	mm	45	-
	Max. particle diameter (disk type)	mm	400	420
	Max. length of workpiece	mm	380	400
	Cutting amount of stainless steel on one side	mm	3	4.5
	Machining accuracy of the workpiece	mm	±0.0075	-
	Surface roughness	Ra	1.6	1.6
	the height of center tool holder	mm	50	-
	Turning Diameter	mm	420	-
	Square Knife Specifications	mm	20*20	-
Travels	X-axis effective travel	mm	1000	-
	Z-axis effective travel	mm	400	-
Y-axis	Y-axis mode	-	side 4+ end 4 power head	-
	Y-axis travel	mm	220	-
	Y-axis power head clamping type	-	ER225	-
	Y-axis maximum speed	rpm	2500	4000
	Y-axis rapid traverse speed	m/min	15	-
	Maximum drill diameter	mm	16	-
Feed	X-axis rapid traverse	m/min	25	30
	Z-axis rapid traverse	m/min	25	30
	X-axis servo-motor power	kW	1.5	-
	Z-axis servo-motor power	kW	1.5
Spindle	Max.Spindle Speed	rpm	3500	4000
	Spindle Motor Power	kW	5.5kw servo	7.5kw servo
	Spindle nose taper	-	A2-5	-
	Support hydraulic chuck size	inch	8	10
Dimensions	Dimensions	mm	2100*1500*1900	-
	Total Weight	kg	2800	-

Machine tool specifications and component items		Specification	Standard	Optional
Part Specifications	Screw	32mm	Taiwan ball grinding precision grade	-
	Guide rail	30mm	Taiwan H-class linear guide rail	-
	Bearing	-	SZGH high rigidity barrel spindle	-
	Spindle motor	5.5kW	Server host	-
	Feed servo	1.5kW	SZGH High Speed Servo	-
	CNC Control	Ac8F-G	SZGH high-speed CNC system	-
Machine specifications	Bed Type	45°	Slant Bed	-
	Base form	-	Heavy-duty anti-deformation patented base	-
	Clamping method	-	hydraulic clamping	-

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.
Optional Accessories
Similar Products

Application

Company Introduction
Brief Overview 1. We are a company specializing in the manufacture of CNC systems, turning and milling machine machines, and industrial robots.Since its establishment, we have more than 10 years of experience, and we have successfully exported our products to all countries in the world. Our company is committed to providing high-quality, high-performance machinery and equipment to meet the needs of customers.
2. As a technology company, our products cover the fields of CNC systems, mini CNC turning machines, turning and milling machines, and industrial robots. We use state-of-the-art technology and innovative design concepts to continuously push the industry forward. Our team consists of a group of experienced and skilled engineers and experts with in-depth knowledge and expertise in the field of mechanical engineering and automation. Advantages of our company
1) High-quality products: We are committed to providing high-quality machinery and equipment, using advanced manufacturing technology and strict quality control to ensure the reliability and stability of products. Our products are rigorously tested and quality verified to ensure compliance with the highest industry standards.
2) Technological innovation: We continue to pursue technological innovation and research and development, leading the development trend of the industry. We work with research institutes and partners to research and develop new technology applications to provide customers with more efficient and intelligent solutions.
3) Customer customization: We fully understand the unique needs of each customer and provide customized solutions. Our team of engineers works closely with our customers to ensure that our products and services meet their specific requirements and provide the best solutions.
4) Global market expansion: We have successfully exported our products to all countries in the world, and established an extensive international sales network. We have an in-depth understanding of the needs and trends of each market and provide our customers with global support and services.
5) After-sales service: We attach importance to long-term cooperative relations with customers, and provide comprehensive after-sales service and technical support. Our after-sales team is always ready to answer customers' questions and provide training and maintenance support to ensure customer satisfaction and the normal operation of equipment.
FAQ
Q1. Who are we?
A1: We are based in Guangdong, which provides CNC total solutions& cnc lathe machine&milling machine
technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
Q2. How can we guarantee the quality?
A2: Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
Q3. How does your CNC machine work with my production schedule?
A3: Our machine tools use our complete set of CNC systems, and we can also change the corresponding configuration according to your
needs, such as turrets, kits, etc., to solve the trouble of debugging and refitting after you receive the goods in advance.
Q4. What services can we provide?
A4: 1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Italian, and so on.
Q5.What is control mode for feeding Axes?
A5: Our Normal CNC support Pulse+Direction signals for feeding axes drivers; Our Modbus CNC support EtherCAT /Powerlink modbus for feeding axes drivers.

Q6.What is control mode for spindle axes?
A6: There are dual analog voltage outputs(0~10V) for speed control of spindle axis. Our Modbus CNC also support Pulse speed spindle, also can use pulse to control speed of spindle servo system.

Q7.Does your cnc support ATC function?
A7: Yes, our CNC lathe system can support most of turret, like Eletric turret,servo turret,counting turret,etc; We can edit special macro program & plc for special turrets also; And our CNC milling system support Linear type , umbrella type, arm type, turret type tool magazines.
Q8.Does your cnc support booting logo exchange?
A8: Yes, no problem.

---
