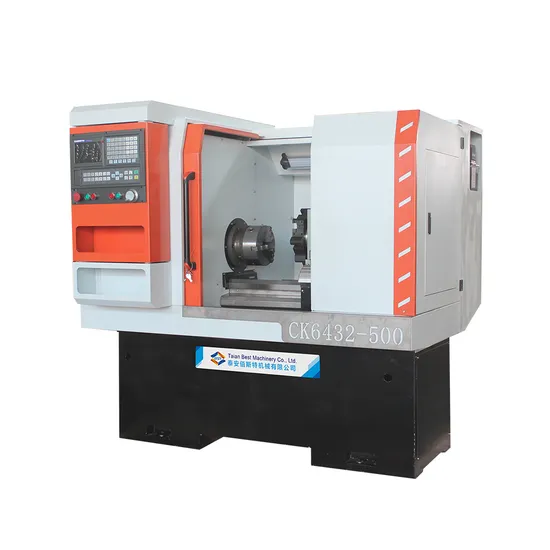

Ck6432 China Good Price Universal Parallel CNC Turning Milling Drilling Lathe Machine

Product Description

Product Description
CK6432 series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity, etc. its main components and structures have been optimized. It is the first choice for machining shafts, discs, sleeves, special surfaces and screw workpiece.
GSK CNC system and full digital AC servo system, X and Z axes adopt semi closed-loop control, C3 precision ball screw is adopted for ball screw pair, and electrical components are imported or domestic well-known brands, which comply with CE or domestic 3C certification.
The machine tool shall be inspected in strict accordance with the inspection procedures before leaving the factory. Each machine tool adopts laser interfere meter to detect the positioning accuracy and repeated positioning accuracy of X and Z axes, so as to ensure the stability and reliability of the accuracy of the machine tool.
Standard configuration: Optional configuration:
-GSK928 control system; -Siemens808D,Fanuc0i-TF, KND.....
-Pneumatic collet; -Manual chuck ,Hydraulic chuck, Pneumatic chuck ;
-Gang type tool post ; -4/6/8 station electric tool post ;
-Cooling device; -Hydraulic tailstock;
-Automatic lubrication system and Lighting system -42 type oil bar feeder ;
-Manual tailstock; -Independent power head;
Product Parameters

Item	CK6432
Max. swing dia. over bed	Φ360mm
Max. swing dia. over cross slide	Φ150mm
Max. workpiece length	500mm
Diameter of spindle bore	60mm
Spindle taper	A2-6
Spindle speed	150~2500rpm
Chuck size	200mm
Tool holder	Vertical
Main motor power	4 kw
X/Z axis position accuracy	0.02/0.025mm
X/Z axis repeatability	0.01/0.012mm
X/Z axis torque	4/4N.m
X/Z axis fast feeding speed	8/10M/MIN
Tailstock sleeve travel	100mm
Tailstock taper	MT4
Dimension	1700x1400x1700mm
Weight	1500KG
