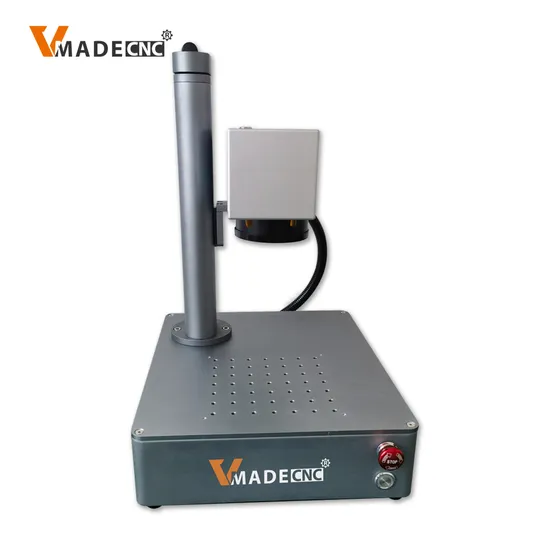

Mini Split Laser Marker Fiber Laser Engraver on Metal 20W 30W 50W Laser Marking Equipment Metal Tool Portable Metal Plastic Laser Marking Machine

Product Description

Raycus Jpt Ipg 20W 30W 50W Mopa Color Fiber Metal Laser Marking Cutting Engraving Machine with Rotary
Product Description Fiber Laser Marking Machine suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts, Plastic& Paper Materials, The Electron, Hardware which with high request for depth, smooth,accuracy such as horologe, Mould, bitmap marking etc. Detailed Images
Technical Parameter

Technical parameters
Machine name	Laser Marking Machine
Laser power	20W 30W 50W optional
Laser type	Fiber laser
Laser source brand	Raycus
Laser Wavelength	1064nm
Marking area	100*100, 150*150, 200*200, 300*300mm (optional)
Marking depth	0-2mm ( Depending on material type and time)
Max marking speed	0-7000mm/s
Min linear width	0.02mm
Control software	EZCAD software
Graphic format supported	BMP, DXF, PLT, AI, DST, JPG,etc
Working voltage	AC220V 50HZ AC110V 60HZ
Cooling type	Air cooling
Warranty time	3 years
Gross weight	45kgs
Packing size	75x41x78cm

Samples Picture Fiber laser marking machine application
Metal material (gold, silver, copper, Iron, aluminum, titanium, zinc, stainless steel, etc)
Plastic material (PC,PVC,PE,HDPE,ABS,PPR,PET,HIPS,PS,PP,PPO,PA)
Others (Oil paint surface, coating surface, plastic film, package, etc)
50w 60W 80W 100w 120w more suit for deep engraving and cutting 1mm thickness metal jewelry.
Factory Show
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in hightech zone.It is a professional team which specialized in Optic, Electricity, Mechanics. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers. Contact Information
Please tell us what you need
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ?
If you have any questions, Please contact us

---
