High precision PTFE skived film machine

Product Details

Product Description

Product Description

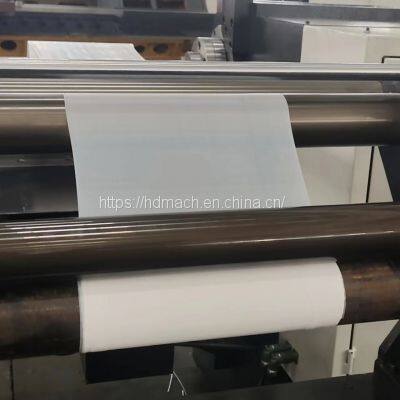

PTFE skived film machine is mainly used to skive PTFE raw material ( less than φ420mm, length 100 - 850 mm) into film with a certain thickness.
1. Peeling film width: 100~850 mm
2. Remaining diameter of rotary cutting: ≥φ60mm
3. Peeling film thickness: 0.01~1mm (with static pressure spindle unit)
4. Raw material maximum diameter: Φ 420 mm
4. 5. Raw material core diameter: φ 90mm
6. Discharging speed: ~20m/min
7. Feed speed: 0.05~0.5mm/min
8. Spindle speed: 8~60 RPM
9. No-load speed: 300mm/min
10. Total installed capacity: ~15KW
11. Dimensions (L× W× H): 3800X1550X1430
12. Machine net weight: 4500kg Approx.

---
