Product Description
Product Description

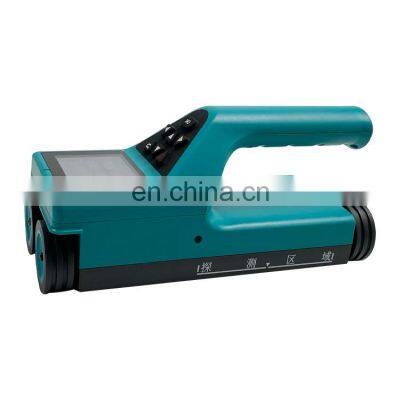

Product Usage and Features R800 Integrated Concrete covermeter rebar locator The integrated Concrete covermeter is a portable non-destructive testing instrument, which can be used to test the construction quality of reinforced concrete structures. It can measure the position of rebars on the concrete surface, the depth of the concrete, the location and orientation of reinforcement bar (rebar) or metal pipe and can even determine the diameter of the rebar. The position of the body and the conductor are detected, such as the internal cable of the wall and the plumbing pipe. The pre-construction detection can effectively avoid damage to these facilities during construction and reduce accidents.1.Infrared ray confirming orientation.2.Thickness detection mode is intuitive, showing thickness and steel spacing at the same time.3.Thickness detection mode can automatically store thickness and spacing.4.The waveform scan mode also shows the thickness and spacing of the rebar protective layer.5.2.8 inch high resolution color liquid crystal screen.6.Large TF card storage capacity, intuitive and convenient transmission.7.PC professional data analysis software, data processing and report generation can be easily completed.Technical ParametersModelGTJ-R800Rebar dia. setting range6mm~50mmSmall range1mm~90mmLarge range1mm~210mmMax. allowable errors of the Concrete Cover Thickness1-80mm (±1mm)81~120mm (±2mm)121~210mm (±4mm)Scope of dia. estimationφ6mm~φ32mmProfile measurement functionSupportMesh measurement functionSupportWaveform measurement functionSupportprobe self-calibrationSupportMax. errors of Diameter indication ±1 specificationHost parametersScreen size: 2.8 inch Resolution: 240*320Volume: 220*93*110mm Weight:0.6KGData transmission modeTF card; wireless cloud transmission (potional)Power suppyLithium batteryStorage capacity2000 Components *1000 Measuring pointsWorking environmentTemperature: -10℃ ~ +40℃ Humidity： ≤90%RHDetailed ImagesFunctionsasure the diameter of the rebars on the concrete surface;asures the thickness of concrete cover over steel reinforcement bars and metal pipes;asures the location and orientation of reinforcement bar (rebar) or metal pipe.Infrared ray confirming orientation Portable Integrated DesignSmall in SizeColor ScreenHigh ResolutionVarious MeasurementProfile, Mesh and WaveformProbe Self-calibrationCompany IntroductionCangzhou Lovely Technology Co., Ltd. It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.Welcome to contact us and get our on-line supportPacking & DeliveryAfter Sales ServiceFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing various Engineering quality testing instruments and Material testing machines. We could also purchase other related products as request.Q2: Do you have an OEM service?A: Yes. We can provide OEM services according to your requirements.Q3: How long is the production cycle after ordering?A: General it is about 15-30 days. We will send the time according to the order’s quantity.Q4: What are the payment terms?A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
>>
