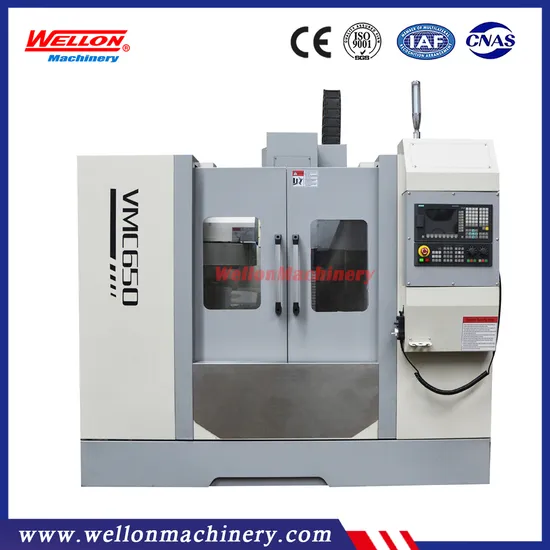

Vmc650 Small CNC Vertical Machining Center/CNC Milling Machine Tools

Product Description

Product Description
Detailed Photos



Product Parameters

Feature:
Use strong rigid casting steel. X/Y/Z axes are supplied with rectangular guide ways by plastic sticker, medium frequency quenching and precisely scraping
Spindle from Taiwan with high speed and precision.
Imported bearing with high precision
Coolant system equipped with pump of large flow and high lift pump to insure enough cooling under high-speed cutting.
1. Resin sand casting;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Standard with belt driven spindle, optional for direct driven spindle;
4. Taiwan pneumatic cylinder;
5. Taiwan ATC, umbrella type or disc type are available;
6. Headstock balancing system have heavy casting or nitrogen balance system as option;
7. Full enclosed cover;
8. Rigid tapping;
9. Spindle center air blast;
10. Work lamp;
11. Pilot lamp;
12. USB and Internet interface;
13. Manual pulse generator (MPG);
14. Centralized automatic lubrication system.
15. Cooling system.
16. Heat exchanger for electrical cabinet ;
17. Leveling blocks & bolts;
18. Toolbox and tools;
Technical Parameter:

Model	VMC650
table size	800*500mm
Max. table load	400 kg
T slot qty-width*distance	5-18*90
spindle speed	8000rpm
spindle nose to table surface	120-620mm
Spindle center to Column surface	550mm
Spindle taper	BT40
Main motor power	5.5/7.5kw
Feeding rate	1-10000mm/min
X axis travel	600mm
Y axis travel	500mm
Z axis travel	500mm
X/Y/Z axis rapid feed	36/36/36 m/min
Tool changer type	Umbrella type
Tools capacity	16
Max. tool length	300mm
Max. Tool diameter	Φ120
Max.tool(kinfe) weight	8kg
Positioning accuracy	±0.008
Repeat positioning accuracy	±0.005
Net Weight	3900kg
Overall Dimension	2300*2200*2400mm

Standard accessories: Fanuc 0i-MF control system
Taiwan Spindle: 8000rpm
X/Y/Z axes:Fanuc brand servo drive motor
16 tools Umbrella type
USB for information transfer
Rough cutting of thread
Full closed cover
Movable hand-wheel Axis linear guideway from Taiwan Hiwin
Ball leadscrew from taiwan Hiwin
Tri-color indication lamp
Automatic lubrication
Coolant system
Work lamp
Air gun
Water gun
Optional accessories: Automatic chip conveyor& chip bucket(Chain type)
Automatic chip conveyor& chip bucket(Screw type)
Spindle direct driven, spindle speed 12000rpm
Nitrogen balance system
Spindle oil cooling
Spindle center water spray
NSK bearings
24 Tools disc type ATC
Air conditioner in cabinet
Company information

Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
