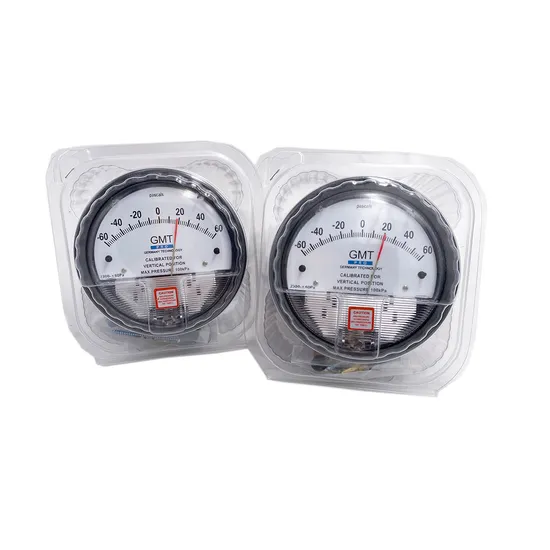

Stainless Steel Magnehelic Differential Pressure Gauge

Product Description

Air magnehelic differential pressure meter

1. Technical Parameters of magnehelic differential pressure gauge :
Ambient temperature : -70 ~ 60 °C
Rated Pressure : -68 ~ 103KPa
Overvoltage : about 172KPa overvoltage when the rubber stopper has been rushed to open .
Process connection : high and low pressure holes are 1/ 8 " threaded spinal canal , two ( side and back of a group )
Housing material : die cast aluminum , aluminum and chrome body parts after 168 hours salt bath test , the final coating of dark gray exterior .
Accuracy: at 21 °C is ± 2% FS (- 125PA; 250PA type is 2%,-60PA, type 2% )

2. Features of MAGRFHELIC differential pressure gauge :
Practical patent products
OEM manufacturers
Magnetometers spiral vortex bar mechanism virtually eliminating the friction generated by the gear .
Table without filling the liquid .
No inertia, no drift pointer movement.
No lag · nature.
Excellent resistance to vibration, anti- jitter performance.
Measurable positive, negative or differential pressure .
81 kinds of range, minimum 0 - 30Pa, Maximum 0 - 80KPa.
Group 2 pressure ports ( back side ) = + three kinds of freedom and flexibility of installation applications.
Good accuracy and reasonable prices

3. Applicable industries of MAGRFHELIC differential pressure gauge :
Health care, microelectronics , aerospace, environmental engineering , biological engineering , pharmaceuticals , building intelligent , HVAC , food and beverage , precision electronic processing

4. Hot sale:
0-60pa 0-100pa 0-125pa 0-250pa 0-400pa 0-500pa 0-600pa 0-750pa
0-1kpa 0-1.5kpa 0-2kpa 0-3kpa 0-5kpa 0-8kpa 0-15kpa 0-25kpa
± 30pa ± 60pa ± 100kpa ±125pa ± 250pa ± 500pa ± 1kpa
5. More pictures:
Package and Shipping
1.FedEX / DHL / UPS / TNT for samples,Door to door service;
2.By sea for batch goods;
3.Customs specifying freight forwarders or negotiable shipping methods;
4.Delivery Time:20-25 Days for samples;30-35 Days for batch goods;
5.Payment Terms:T/T,L/C at sight,D/P etc.

FAQ
Q1. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry.
If you are urgent to get the price, please send the message on skype and wechat or call us directly.
Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost.
But the sample cost can be refundable when your quantity of first order is above the MOQ
Q3. Can you do OEM for us?
Yes, the product packing can be designed as you want.
Q4. How about MOQ?
1 pcs for carton box.
Q5. What is your main market?
Eastern Europe, Southeast Asia, South America.

Please feel free to contact us if you have any question.

---
