Low Friction Coefficient, Round or Square Rods and Strips, Anti Static PE Rods, UHMWPE Rods and Bars

Product Description

Brief Introduction

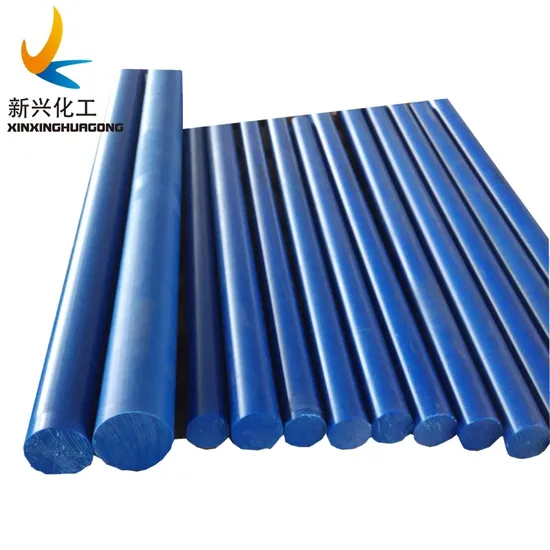

XINXING produce all kinds of UHMWPE rods icluding the round UHMWPE Rod and square UHMWPE Rod. Our UHMWPE bar can be various size according to customer requirements.
Green UHMWPE Bar, Red UHMWPE Bar, Yellow UHMWPE Bar, Black UHMWPE Bar, Blue UHMWPE Bar,etc .
All kinds of UHMWPE Bar is available with XINXING Company.
Shandong Ningjin Xinxing Chemical Co.,ltd have nearly 15 years in manufacturing the HDPE and UHMWPE products. Our factory is the biggest and our sevrice is best.
UHMW-PE Rod Advantages:
Excellent impact resistance
High mechanical strength
Resistant to many solvents
Fantastic electrical insulator
Splendidt abrasion resistance
High damping properties
Continuous use temp. of -269 to 80 Deg. Cent.
Minimum water absorption (0.01%)
Extremely low co-efficient of friction
Chemical resistance: UHMWPE is resistant to acids, salts & salt solutions, alcohols, oils, fats, waxes & many solvents.
All PE material is affected by strong oxidizing agents such as nitric acid, chromic acid or halogens.
Aromatics and Halogenated hydrocarbons cause swelling.
HDPE/UHMWPE Rods
Technical Data

PROPERTIES	Test Method	Unit	Value
I.Physical Properties
Density	ISO 1183	g/cm3	0.95~0.96
Water absorption 24hrs	ISO 62	%	0.01
II.Thermal Properties
Heat deflection temperature - HDT/A	ISO 75-2	ºC	55
Min. service temperature		ºC	-30
Max. service temperature-Long Term		ºC	90
Thermal conductivity at 23 ºC	DIN 11359	W/(K*m)	0.42
Coefficient of linear thermal expansion	ISO 11359	10-4*K-1	1.5
Flammability Rating(6mm thickness)	UL 94	-	HB
III.Mechanical Properties at 23ºC
Tensile strength at yield	ISO 527-2	MPa	27
Tensile strength at break	ISO 527-2	Mpa	35
Elongation at break	ISO 527-2	%	700
Modulus of elasticity after tensile test	ISO 527-2	MPa	1,000
Modulus of elasticity after flexural test	ISO 178	MPa	1,000
Hardness - Shore D	DIN 53505		64
Charpy impact strength	ISO 179	kJ/m2	N. B.
Friction coefficient	DIN 53375		0.3
IV.Electrical Properties at 23ºC
Dielectric constant at 1 MHz	IEC 60250	106Hz	2.3
Dielectric loss factor at 1 MHz	IEC 60250	106Hz	3.1
Volume resistively	IEC 60093	Ohm (Ω) * cm	>1016
Surface resisively	IEC 60093	Ohm (Ω)	>1015
Dielectric strength	IEC 60243-1	kV/mm	17
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m

Name	Round Solid UHMWPE Rod
Material	PE,UHMWPE,HDPE
Color	White,black,green,nature,blue,yellow,etc
Diameter	5-200mm,or customized
Condition	In stock/Made to order
Shape	As per your drawing
Certification	ISO9001:2008
Free Sample	Available
Shape	Sheet, rod, tube, gear, rack,pulley, guide rail, Plastics fittings,and so on
Advantage	One stop procurement
Packing	Plastic bags,Cartons,Wodden case,Pallet,Container,etc.
Other	24 hours instant and comfortable customer service.
	Shipping status notification during delivery.
	Regular notification of new styles & hot selling styles.

About Shandong Ningjin Xinxing Chemical Co.,Ltd.
With the excellent experience of many years in manufacturing engineering plastics, Xinxing was established in 1989. Now, it becomes the largest and most professional manufacturer of Engineer plastics such as UHMWPE Sheets, ground protection mats, crane outrigger pads, UHMWPE fender pads, wear-resisting liners, HDPE Sheets and parts, PP sheets and parts and other engineer plastics.
Our factory covers an area of 36000 square meters which has 7 big workshops for different products and application. Xinxing is the only manufacturer that produces both extruded and pressed plastic products in China and represents the most advanced productive forces and highest quality.
Our products are widely exported to many countries all over the world such as Indonesia, Malaysia, Korea, Japan, Russia, Germany, India, England, Italy, South America, Canada, Chile, etc.
Our management creed is "Quality first, Customer first, Keeping improving". We are willing to establish a wide and continuous cooperation with enterprises home and abroad. We sincerely hope to establish business relations with you.
