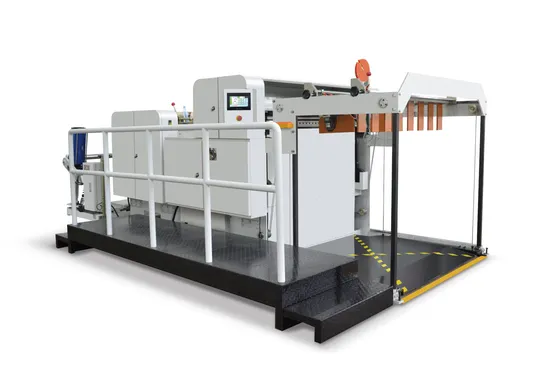

Automatic Roll to Sheet Trimming&Stacking Paper Sheeter Machine

Product Description

Feature:
We adopt servo motor to control the length of cutting, This machine has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise. Frequency converter control motor speed with stable running, automatic counting, alarm and automatic-stop, Full automatic tension control. Web edge position automatic correct control by EPC system. Waste edge is blowing by fan automatically. Adopts pneumatic shaft materials loading system with much easy operation and convenience. It adopts servo motor for controlling constant-length cutting(precision:±0.2mm) It adopts Japanese Panasonic PLC control, Taiwan Weinveiw touching panel (screen operation). The machine can slit to two sheets and color photo eye(color tracking sensor) for after printing web material. The machine can automatic to trimming and stacking the finished sheets. Usage:
This machine is suitable to cut the jumbo roll material to sheets. GSM range:10-450.Material:paper, coated paper adhesive sticker paper,paper&film laminated, and so on. Teachnical Specifications:

Max width mother roll	1100mm
Max diameter mother roll	1400mm
Max mother roll weight	1200KG
Cutting speed	0-150 times/min
Cutting type	Guillotine knife
Cutting length	20-1200mm
Cutting capability	70-500gsm
Precision	±0.2mm
Speed regulation control	Frequency converter
Total Power	10KW
Power input	380V,50HZ,3PH
Dimension	9000*1600*1500
Total weight	6000KG

Please note the machine speed may be limit by other units.
Drive system

Cutting Motor	1.5KW
Feeding Motor	1.5KW
Main Motor	4.4KW,Servo motor
Frequency converter	4.4KW,SINEE
Feeding roller	Rubber roller
Transmit roller	Aluminum roller
Transmit way	Synchronous belt
Pressing way	cylinder
Bearing	Renben

Cutting equipment

Guillotine knife	1set
Blade knife	3set
Adjustment way	Freely by manual

Unwinding equipment

Unwinding type(optional)	3-6inch, air shaft
Lifting up way	Cylinder&hydraulic control
Guide way	Right&Left 150mm

Control system

PLC	Panasonic,Japan
Touching screen	Weivien,China Taiwan
Tension control	Full automatic
EPC(edge postion correct)	China
EPC precision	±0.2mm
EPC sensor	Ultrasonic
Count meter	Full automatic
Automatic stop	Setting in PLC touch screen

Optional device

Static canceller	1set
Color tracking sensor	Leuze,Germany brand

Workshop

---
