HOWO 4X2 6X4 18000 Liters Foam Water Tank Fire Fighting Truck for Sales

Product Description

Sinotruk New Design water and foam Howo Fire Truck
Fire truck(also called fire truck, fire fighting truck, water tank fire truck ,foam tank fire truck,fire sprinkler truck, fire pump truck, fire rescue truck, fire fighter truck, fire alarm truck, fire ladder truck, fire foam truck, fire water cannon, fire engine, fire monitor, fire fighting vehicle, water tanker fire truck, foam tanker fire truck, water carrier fire truck ) is mainly used to emergency fire fighting.

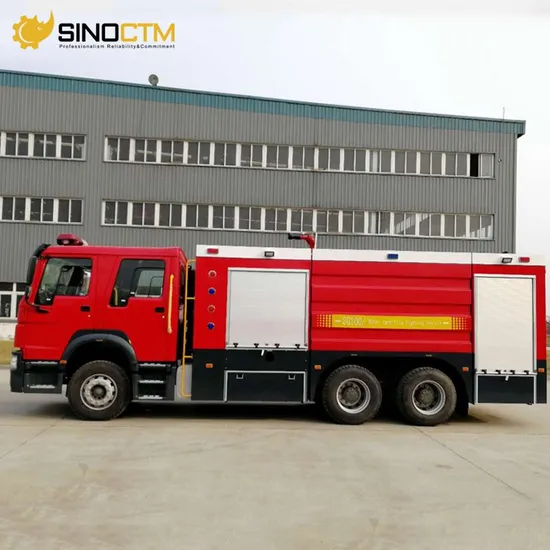

HOWO 6X4 Water fire Truck 16000L

SINOTRUK HOWO 6x4 WATER FIRE TRUCK SPECIFICATIONS
Truck Model			ZZ1257N4641W(Left Hand Drive )
Truck Brand			SINOTRUK-HOWO
Dimension (LxWxH) (unloaded)mm			10900×2550×3750
Wheel base (mm)			4600+1350
Max. Driving speed (km/h)			95
Front axle loading capacity (kg)			9000
Rear axle loading capacity(kg)			2*16000
Curb weight (kg)			22000
Gross vehicle weight			35000
Vehicle parameters		External dimensions	9120×2190×3010mm
		Maximum total mass	15000kg
		Liquid carrying capacity	1000kg
		Maximum speed	105km/h
		Rated flow of fire pump	20L/s 1.0MPa
		Specific power	105/7.16=14.6
Engine		Model	SINOTRUCK ENGINE
		HAoserpower	336 hp
		power	96 KW
		Engine displacement	3900ml
		Engine emission standard	Euro 2
Chassis		Driving form	6X4
		Wheelbase	3300mm
		Maximum permissible gross weight	8000kg
		Minimum turning radius	≤14m
		Transmission case	Hand gearbox.
		Power take-off	QJWLY655-010X
Cabin		structure	Flat head, four doors, original double row
		Number of drivers and passengers	3+3 persons
		Driver's position	Left side
		Equipment	The instrument panel of the vehicle is equipped with fire control operation instrument panel and alarm light control box, and is equipped with 1. Alarm; 2. Power take-off control switch and indicator light; 3. Additional power switch;
Equipment box and pump room		structure	The main frame structure is welded with high-quality square tube, and the external decorative plate is welded with carbon steel plate. The roof is antiskid and walkable.
		Equipment box	The equipment box is located at the rear of the passenger compartment, with aluminum alloy rolling shutter doors on both sides, and lights inside. Storage box shall be set in the equipment box room according to the requirements.
		pump room	The pump room is located at the rear of the whole vehicle, with aluminum alloy rolling shutter doors on both sides and the rear. There are lights inside. Some common equipment can be placed on both sides of the pump room
		Ladder and car handle	The rear ladder is aluminum alloy two section overturned ladder, which is not more than 350mm above the ground when used. The upper handle is made of round steel pipe with groove on the surface, and the surface is sprayed with plastic
Water tank		capacity	16000 liter
		Texture of material	High quality stainless steel, 3mm thick
		Tank fixing	Elastic connection with chassis frame
		Tank setting	Manhole: one dn460 manhole with quick locking / opening device
			Overflow port: one DN65 overflow port
			Drain outlet: one Dn40 water tank with ball valve
			Water injection port: connect one DN65 connector on the left and right sides of the water tank
			Water inlet and outlet: 1 water tank to water pump inlet pipe, DN100 valve, pneumatic and manual control, 1 water pump to water tank filling pipe, DN50 valve, pneumatic and manual control
Water pump		Model	CB10 / 20-rs low pressure vehicle fire pump
		form	Atmospheric centrifugal
		Rated discharge	20L/s @1.0MPa
		Rated outlet pressure	1.0MPa
		Maximum suction depth	7m
		Diversion device	With slide pump
		Diversion time	≤35s
Piping system		Pipe material	High quality seamless steel pipe
		Suction pipeline	One DN100 water inlet is set at the back of pump house
		Water injection pipeline	One DN65 water injection port is set on the left and right sides of the water tank, and one DN65 water pump is set in the pump room to inject water into the tank
		Outlet pipeline	One DN80 water outlet with stop valve and cap is set on the left and right sides of the pump house
		Cooling water pipeline	Cooling water pipeline and control valve with cooling power take-off
Fire control system		Control in cab	Pump out of gear, alarm light, lighting and signal device control, etc
		Pump room control	Upper main power switch, parameter display and status display
Electrical equipment		Auxiliary lighting	The fireman's room, water pump room and equipment box are respectively equipped with lighting, indicator lights, etc. on the control panel
		Strobe lamp	Red and blue strobe lights are installed on both sides of the vehicle body
		Warning device	Long row of all red warning lights, installed on the top of the cab Alarm with control box under the front of the driver
		Fire scene lighting	One 35W fire searchlight is installed at the back of the upper part
equipment layout		According to the actual fire fighting needs, according to the fire operation procedures, take and place nearby.
		Use special clamps to prevent rust, vibration, falling off and scratch.
		The signs shall be eye-catching and operated by multiple persons without interference.
No	Name			unit	qty
1	Suction pipe		Φ150(2m)	pcs	4
2	Water filter		FLF150	pcs	1
3	Fire hose type 16		13-80-20m	set	4
4	Fire hose type 16		13-65-20m	set	4
5	Water separator		FFS80	pcs	1
6	manifold		FJ150-2B-1.3	pcs	1
7	Interface		KJ65/80	pcs	2
8	Special reducer		KY150/KT100	pcs	1
9	Hose blanket		FP470	pcs	4
10	Hose Bridge		FH80	pcs	1
11	Hose hanger		FG600	pcs	4
12	Ground hydrant wrench		FB450	pcs	1
13	Underground fire hydrant wrench		FBA800	pcs	1
14	Suction pipe wrench		FS150	pcs	4
15	Dry powder fire extinguisher		MFZ2	pcs	1
16	DC switch water gun		QZG19	pcs	1
17	DC spray water gun		QWJ16	pcs	1
18	Air foam gun		PQ4(4L/S)	pcs	1
19	Air foam gun		PQ8(8L/S)	pcs	1
20	Fire axe		GFP890	pcs	1
21	Spade		2#	pcs	1
22	Iron collar		GT06	pcs	1
23	Pick pick		4kg	pcs	1
Packing		Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Fire fighting truck can be divided into many types:
a. According to vehicle size ,there are mini fire fighting truck ,light fire fighting truck ,medium fire fighting truck ,heavy-duty fire fighting truck;
b. According to chassis drive type ,there are 4x2 fire fighitng truck ,6x4 fire fighting truck ,8x4 fire fighitng truck and off-road type 4x4,6x6 fire truck;
c. According to chassis brand,ther are Dongfeng,FOTON,FAW ,SINOTRUCK ,etc.
d. According to fire agent,there are water tank fire fighting truck ,water/foam fire fighting truck ,dry powder fire fighting truck
Fire truck details
Our Company
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced the steyr technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Our Certificates
Fire Trucks on board for shipping FAQ
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T About Us
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3 working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.

---
