Diaper Hugies Mamypoke Panda Disposable Baby Over Night Nappy Machine

Product Description

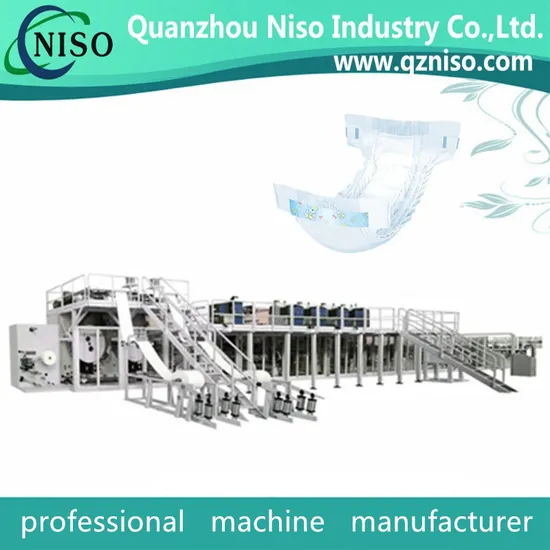

Disposable Baby nappy Machine
Four kinds of machines for you to choose

Part 1 Parameter
Model	YC-YNK400	YC-YNK500-FC	YC-YNK500-HSV	YC-YNK600-SV
Name	Economic baby diaper machine	Frequency baby diaper machine	Semi servo baby diaper machine	Full servo baby diaper machine
Automaticly	Semi-auto	Full auto	Full auto	Full auto
Product size	S, M, L, XL	S, M, L, XL	S, M, L, XL	S, M, L, XL
Design speed	400pcs/min	500pcs/min	500pcs/min	600pcs/min
Production speed	300pcs/min	400pcs/min	400pcs/min	500pcs/min
Power	200KW	250 KW	250 KW	280KW
Power source	380V, 50HZ, 3 phase 5 wire	380V, 50HZ, 3 phase 6 wire	380V, 50HZ, 3 phase 7 wire	380V, 50HZ, 3 phase 8 wire
Efficiency	>=85%	>=88%	>=88%	>=88%
Rejection rate	<= 3%	<= 2%	<= 2%	<= 2%
Machine weight	45 Ton	60 Ton	60 Ton	60 Ton
Machine size	25m * 3m * 3m	30m * 3m * 4m	30m * 3m * 5m	30m * 3m * 5m
Operating size	25m * 7m * 5m	30m * 7m * 5m	30m * 7m * 5m	30m * 7m * 5m
Air pressure	0.6-0.8MPA	0.6-0.8MPA	0.6-0.8MPA	0.6-0.8MPA
Machine color	Customlized	Customlized	Customlized	Customlized
Machine direction	Customlized	Customlized	Customlized	Customlized
Part 2 Electric part
PLC	×	Mitsubishi / Simense	Mitsubishi / Simense	Mitsubishi / Simense
Touch screen	×	Mitsubishi / Simense	Mitsubishi / Simense	Mitsubishi / Simense
Unwinding type	×	Initiative	Initiative	Initiative
Materials shaft stand	Machanical shaft stand	Pneumatic shaft stand	Pneumatic shaft stand	Pneumatic shaft stand
Tension control system	×	√	√	√
Unwinding motor	×	Invertor motor	Invertor motor	Servo motor
Web guider	Manual	Digital & Auto	Digital & Auto	Digital & Auto
Driving system	One main motor	Three main motors	Servo motor independently control	Servo motor independently control
Detective	Manual	Auto	Auto	Auto
Materials splicing	Manual	Auto	Auto	Auto
Position cutting (Back sheet / frontal tape)	×	Option	√	√
Safety door	Back	Back & Front	Back & Front	Back & Front
Flat belts	China	Switzerland	Switzerland	Switzerland
Timing belts	China	USA	USA	USA
Bearing	China	Japan	Japan	Japan

Why Choose Our Machine?
1. the whole machine is drived by servo motors, which can control the drive system more accurately.

2. Unwinding is controlled by constant tension

3. Can change raw material without reducing the speed

4. Equipped with pneumatic shaft, easy to change raw material

5. Equipped with automatic detecting & rejecting system

6. Web guiders

7. PLC control system

8. stereo fluff core

9. recombination of legcuff & Elastic waistband on line

10. S cutting of side tapes

11. Elastic ears

12. full servo staker & automatic packing

13. recombination of backsheet on line

Baby Diaper Machine in Our Buyer's Plant
the product of the machine
How to Buy Our Adult Diaper Machine?


Our Plant

F.A.Q
Q:Are you a machine manufacture or trading company?
A: We are a machine manufacture with 13 years history with making baby diaper machine, adult diaper machine, pull up diaper machine, sanitary napkin machine and underpad machine.

Q: What is the delivery time for a set machine?
A: 120 days as a fastest delivery time. As a manufacture, we need time to make our machine perfect in every taspect.

Q: What is your term of payment?
A:T/T is our first choice, L/C at sight is Ok as well.

Q: How long is the warranty period?
A: one year after the testing finished at the buyer's workshop.

Q: Will you send the engineer to install machine and train our workers in our factory
A: of course. We will send engineer to installing and training. But the salary and accommodation of technician will be on the buyer' s side.

---
