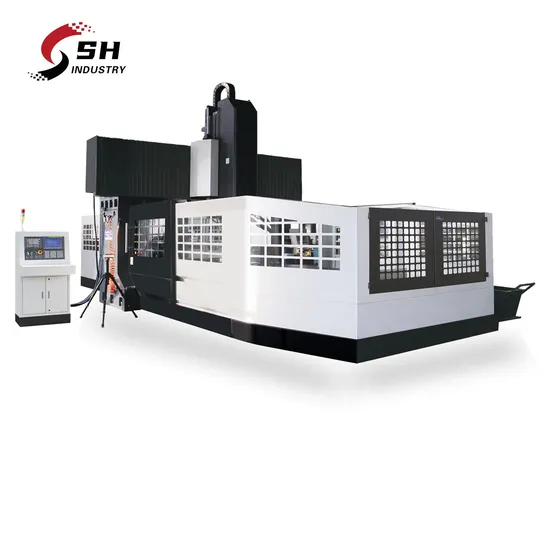

High Quality Gmc3022 High Performance CNC Gantry Machining Center

Product Description

Product Description
High Quality Gmc3022 High Performance CNC Gantry Machining Center

Product Parameters
Cnc gantry machining center
Features:
1. Extremely rigid and stable structure, the oversized column combined with box type beam construction features additional machine rigidity.
2.The slant beam construction with increased slide way surfaces efficiently upgrades force distribution area this results in greater stability.
3. The spindle head is located at the center of beam, providing high movement accuracy, superior heavy cutting capability and outstanding rigidity. The position is specially designed with symmetrical to center.
4.Equipped with spindle motor ball screw and double counter-balance cylinders are all properly located at the best positions to avoid unequal torque, while assuring the best structural accuracy.
5.The double counter - balancing cylinders on Z-axis are suspension supported, close to the movement gravity center, symmetrical to the spindle drive ball screw and the center of spindle motor.Optional position design not only fully eliminates the possibility of unequal torque, but also provides high feeding accuracy and machining accuracy.
6.Linear ways on X/Y-axis combined with box ways on Z axis.Standard configuration FANUC/ SIEMEN Communication Interface ,Separate electronic hand wheel . Spindle blowing Optional configuration Mitsubishi system /SIEMEN CNC 4 axis/5 axis Automatic chip removal system.
Main application:
CNC gantry machining center is with frame structure, with grinding sliding guide, according to a good rigidity, strong shock absorption, processing a wide range of good stability, the machine with milling, boring, drilling (drilling, expansion, hinge), tapping, Countersink and other processing functions, can be equipped with a variety of accessories milling head, with manual change function, to expand the processing range of the machine,parts can be completed at the same time a number of processing steps.
The product structure and process maturity, quality, and stability. Applicable to the aerospace, automotive, ship, printing, packaging, textile, mold, and other mechanical processing areas.Machine tools with high efficiency, high precision, high rigidity, and other characteristics, are the enterprise-efficient, high-volume parts of the ideal choice.

Main technical specifications	Specifications		Unit	GMC3020	GMC3022
	Work table	Table size	mm	3000*1800	3000*2000
		Max.table load	Kg	8000	11000
		T slot	mm	9-22×180	9-28×200
	Processing capacity	X Axis travel	mm	3000	3000
		Y Axis travel	mm	2200	2200
		Z Axis travel	mm	1000	1000
		Gantry width	mm	2000	2300
		Gantry height	mm	1250	1400
		Spindle nose to table surface	mm	200-1200	280-1280
	Spindle	Spindle taper		BT50-190	BT50-200
		Max.spindle speed	rpm	10-6000	10-6000
	Feed	Cutting feed speed	m/min	7	7
		X axis rapid traverse	m/min	12	12
		Y axis rapid traverse	m/min	12	12
		Z axis rapid traverse	m/min	8	8
	Motor	X axis servo motor torque	Nm	40	40
		Y axis servo motor torque	Nm	40	40
		Z axis servo motor torque	Nm	40	40
		Main motor power	Kw	30	30
	Guide rail, lead screw	X/Y axis guide rail		55mm roller type linear rail	55mm roller type linear rail
		Z axis guide rail		hard rail	hard rail
		X/Y/Z Ball lead screw		6316/5512/5010	8020/6312/5010
	Machine dimension		mm	9300*5300*4500	9300*5300*4500
	Machine weight		kg	29000	32000

Realistic photos

Detailed Photos

Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
