Efficient Double Side Turning Machine Tool Manufacturer CNC Lathe Machine

Product Description

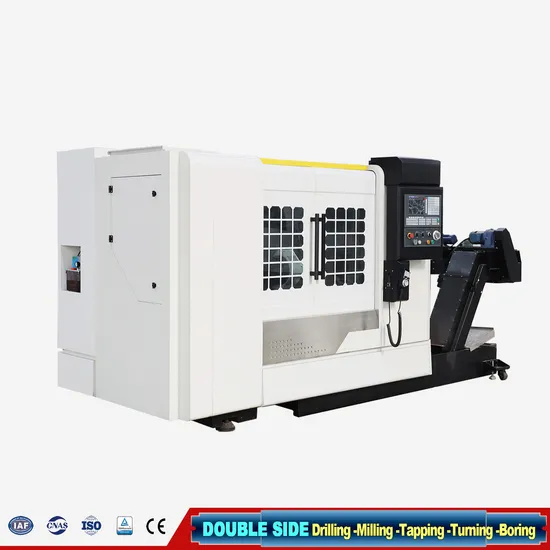

Double Side turrets Turning CNC Lathe Machine

Product Description
double side turning cnc lathe machine
mainly used for shaft workpiece turning with double side
optional with Y axis milling power head turret

machining details
MODEL	WORKPIECE LENGTH	X/Z WORKPIECE LENGTH
XSC500	500	300/250X2
XSC700	700	300/350X2
XSC800	800	300/400X2
XSC1000	1000	250/400X2
XSC2000	2000	350/900X2
XSC3000	3000	400/1400X2

machine details
PARAMETER	UNIT	XSC800
Machine Type		45°slant bed
Spindle Type		single spindle + center holder
Tool Holder Type		Electric/servo
Tool Holder Station		4/8/12 station
MAX. Workpiece Length	mm	800
MAX. Workpiece Diamete mm		72/120/160/200
X Axis Stroke Distance	mm	300
Z AxisStroke Distance	mm	400*2
X/Z Axis Fast Move	mm/min.	45
Processing Coaxiality Spindle Power	mm	24
	kw	5
Spindle Speed	mm/min	2000/1000/500

Detailed Photos
| DETAIL PRESENTATION

AUTOMATION FUNCTIONS
Independently develops and produces upper and lower silos, equipped with functions such as automatic axial positioning, workpiece in-place detection, automated interfaces, and automatic counting.


SPINDE & TURRET
Imported p4 grade spindle, with stable performance, high rigidity and precision, hydraulic clamping, strong clamping force.




GRAVITY ROLLER CONVEYOR
It can be used with roller conveyors and automated robot operations to improve work efficiency.




CNC SYSTEM
Dual channel bus absolute value servo system,no need to reset when turning on,it can be turned on and used as needed.




| PRODUCT SHOOTING


Center drive dual-tooling turret series: the coaxiality of both ends can reach up to 0.01 mm,Fully automatic production process,Upgradable multifunctional power turret,





Company Profile
Shandong Youtai Machine tool Manufacturing Co., Ltd. (YOTMT) is a high-tech enterprise in China that integrates research, production, sales and service, and is a leading brand in the field of high-end and efficient special CNC machinery.
It specializes in the research and development and manufacturing of special machine tools and combined machine tools.
The company was founded in 1998, and the YOTMT brand was established in Tengzhou City, Shandong Province in 2011.
It has a registered capital of 220 million yuan, covers an area of 30,000 square meters, and has several advanced processing, welding, sandblasting and powder coating production lines, as well as two automated heat treatment production lines.
The company's main products include multifunctional CNC milling machines, single-spindle, multi-spindle, double-sided CNC lathes, customized integrated special machine tools, as well as high-precision universal CNC lathes, machining centers, etc., which can meet the processing needs of various complex parts.
The company's products are widely used in aerospace, automotive, energy, engineering machinery and other fields, and are sold to more than 70 countries and regions through various agents and trade channels.
Shandong Youtai Machine tool Manufacturing Co., Ltd. (YOTMT) adheres to the business philosophy of "scientific innovation and quality first", and insists on the service tenet of "honesty-based and customer-oriented".
It has passed the ISO9001 quality management system certification and has won many national honors and patents such as the National Quality Trustworthy Product Certificate, National Famous Brand Product Certificate, High-tech Enterprise Certificate, etc.
The company has a high-quality research and development team and management team, constantly launching new products and new technologies that meet market demand, providing customers with high-quality products and perfect after-sales service.
The company currently has more than 70 national patents, including invention patents in various aspects such as structural design, control system, and intelligence of CNC machine tools.
The company has also won many industry awards issued by the China Machinery Industry Federation, such as the "China Machinery Industry Science and Technology Award", "China Machinery Industry Excellent Brand", "China Machinery Industry Quality Award", etc.
In addition, the company has established close cooperation relationships with many universities and research institutes, participated in many national and provincial key scientific and technological projects, and achieved remarkable results and social benefits.
It has developed into a trusted brand and product quality benchmark in the Chinese market.
Certifications
| Certifications & Activities
With excellent equipment R&D technology, numerous patents,
many large-scale cooperative enterprises, and rich experience in designing professional automated production lines, it is the preferred brand of modern factories and its products are sold well in the international market.
