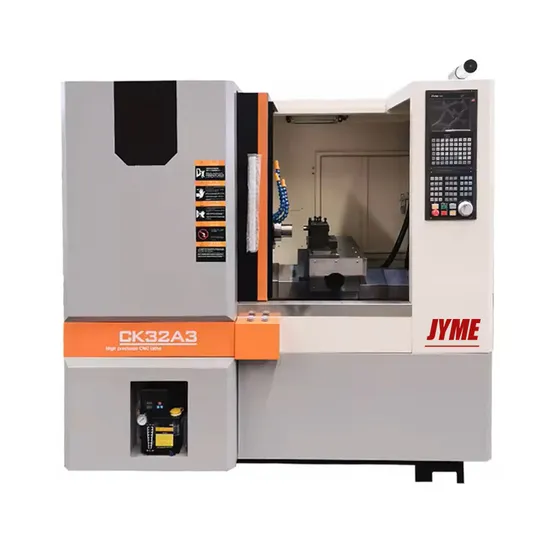

CNC Lathe Ck32A3 High Precision CNC Lathe Swiss Type for Metal Turning and Milling in China

Product Description

Product Descriptions
Main Features: 1. High rigidity casting bed; 2. High precision spindle bearing; 3. Bed guideways industively hardened. Application: 1. It is capable of turning and milling combined processing. 2. It is a high-precision, wide-ranging and practical processing equipment.
3. This type of machine tool is suitable for large-scale and large-scale "slender shaft" parts with relatively large length and diameter, and "small" and "abnormal" parts.
4. Variety, high-precision processing tasks, its processing range is widely applicable to various high-tech industries such as medical, aviation, aerospace, automobiles, motorcycles, communications, refrigeration, optics, home appliances, microelectronics, electronics, watches, mobile phones, etc. 5. Compound processing of precision, multi-batch, complex shape shaft parts and precision small parts.
Parameters:

Specification	CK32A3
Cutting speed	1-4000mm/min
X rapid travel speed	20000mm/min
Z rapid travel speed	20000mm/min
Spindle through diameter	Φ33mm
Max. bar throught hole	Φ32mm
Max. revolving dia.	Φ400mm
Spindle center height from the ground	1000mm
Spindle speed	0-4000r/min
spindle motor power	4kw
X stroke	600mm(Diameter value)
Z stroke	300mm
Guideway	Linear guideway
Machine size	1600*1410*1930mm

Machine details

---
