Manual Operation Pet Bottle Plastic Blowing Machinery

Product Description

manual operation PET bottle plastic blowing machinery
Product Description

What is Blow Molding Machine?
Blow Molding Machine is one kind of two step stretch type bottle making plant.
Blow Molding Machine is suitable to produce plastic bottles based on PET raw material.
Blow Molding Machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles ect.
DEG-3L Semi automatic bottle blow molding machine can produce PET containers including the bottles for kinds
of wine, drink,soybean, vinegar, and pesticide (less than 3Liters) according to the different bottle shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine ,It has high pressure protection with the feature of precisely removing mould ,The machine has no noise ,It is easy to maintain ,It's the equipment for producing PET bottles.

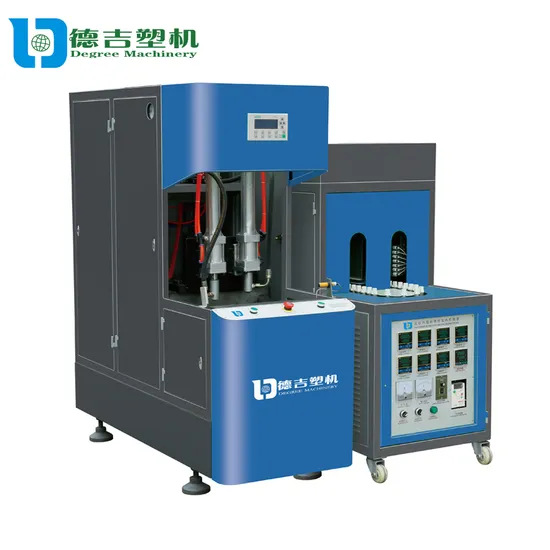

Detailed Photos
1.With PLC and computer,empower stable and easy operation machine.2. Selection of Korean PNC and domestic famous brand gas components.3. Energy-saving design and reasonable & compact mechanical design.
Product Parameters

Model	DEG-3L (One Blower & One Heater)
Clamping Force	100KN
Clamping Stroke	160 MM
Max. Stretching Stroke	360MM
Number of Cavities	2 Cavity
Theoretical Output	900 BPH(500ml)
Max. Mold Thickness	300MM
Voltage Standard	380v/3PH/50Hz or special order
Number of Heating Zone	4 Sections
Total Power (Full Loaded)	10KW
Max. Container Volume	2L
Neck Diameter Range	18-120mm
Max. Container Diameter	360mm
Max. Container Height	380mm
Low Air compressor	10Bar
High Air compressor	30-40Bar
Blow molding machine	1450*600*1700mm
Preform Heater	1800*700*1400mm
Net Weight	850kgs

Certifications
Packaging & Shipping

Company Profile

After Sales Service
FAQ

Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.

---
