Basic Info.
Transmission
Hydraulic Transmission
Bucket Capacity
0.1~0.5m³
Max Bucket Capacity
0.023cbm/120kgs
Total Langth of Track
1220mm
Platform Ground Clearance
350mm
Platform Back Turning Radius
810mm
Chassis Ground Clearance
94.5mm
Transport Package
14PCS /40 FCL
Specification
2300*960*2250mm
Production Capacity
10000PCS
Packaging & Delivery
Package Size
220.00cm * 93.00cm * 225.00cm
Package Gross Weight
1050.000kg
Product Description
Product Description

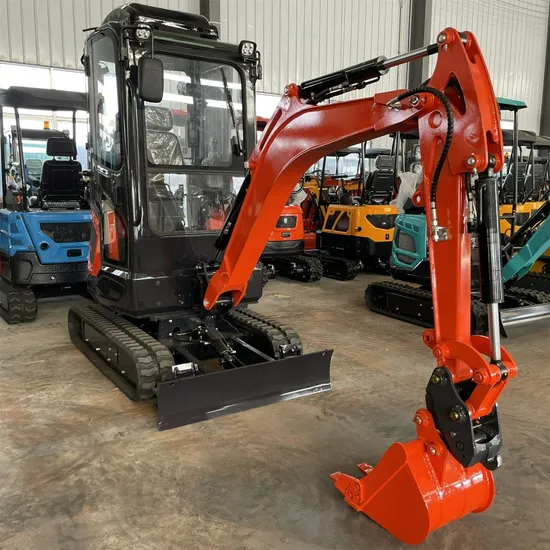

| Model SZ15 |
| Specification | Chassis ground clearance/mm | 94.5 |
| Fuel model | Diesel | Chassis width/mm | 870 |
| Digging bucket capacity | 0.023cbm/120kg | Rubber track height/mm | 310 |
| Digging bucket width | 410mm | Track width/mm | 180 |
| Overall Dimensions(L*W*H)/mm | 2300*960*2250 | Platform back turning radius/mm | 810 |
| Wheelbase/mm | 960 | Platform ground clearance /mm | 350 |
| Total length of track/mm | 1220 | HS CODE : | 8429521100 |
| Overal weight | 950kg | Warranty: | 1 year |
| Technical paremeters | Operating range |
| Engine horsepower | 16 | Max.Digging depth/mm | 1800 |
| Egine brand | YOUPU 2V80 | Max.Digging height/mm | 2820 |
| Engine speed | 3000rpm | Max.Digging radius /mm | 3050 |
| Fuel consumption | 1-1.3L | Min Rotation radius/mm | 1450 |
| Hydraulic tank capacity | 16L | Max.Upgrade height/mm | 180 |
| Diesel tank capacity | 10L | Max.Digging depth /mm | 210 |
| Engine cooling mode | water-cooling | Boom deflection angle (left) | 30° |
| Bucket digging force/kn | 9.7kn | Boom deflection angle (right) | 90° |
| Arm dingging force/kn | 8.6kn | |
Optional
Detailed Photos
FAQ
How long is your lead -time ? 20 working days after deposite. 2.What worranty you should offer?
6 months after delivered destination. 3Do you have stock ?
Depends,some standard truck we have the stock ,but some offstandard we offer in requirment. 4.Shall you do OEM?
Definitely yes, we should do . 5.Shall I customized the color?
6.Sure, you should choose yellow,red,blue white and the color you prefer.
7.What advantages of SANZEO ?
independent research and development,from outlooking design to the mechanics 8.When shall i visit your factory?
Anytime you get ready,you just inform me the date and the final arriving port where i should pick you . 9.Why i choose SANZEO instead of other brand?
SANZEO is the manufacturing offered the products to the Foreign Trading company last 8 years .we know the global quality requirement well and we have the people English well known people taking care your requirements from PRESALE till to AFTERSALE.
>>
