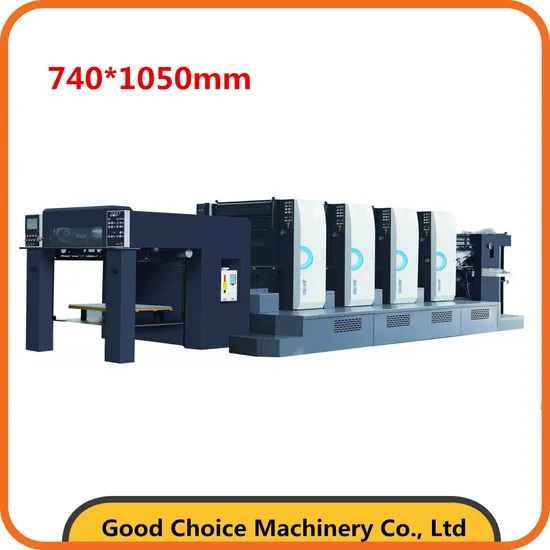

4 Color Offset Printing Machine

Product Description

JD High Quality Offset Printing Machine Detailed Photos
Substrate The perfect solution for ultra-large and ultra-thick paper printing
JD41050 folio four-color offset printing machine features short water and ink roller distances to enable a more economical printing with low, or no, alcohol. Suitable for ultra-wide format and 0.7 mm thick paper, 12,000 sheets per hour for high production packaging printing.
* Designed for ultra-large, ultra-thick paper printing - greater printing flexibility
* Short water and ink roller distance with only three-rollers - saving more materials
* Rollers have high-precision bearing supports- offering greater stability
* Paper infeed via vacuum - allows the machine to run smoothly
* Central ink console and touch screen panel - operator friendly control unit
Note:
The printed paper sheet can be used to make paper bag.
Our Advantages Optimized for ultra-wide and extra-thick paper substrates
* Five separate fiber inspection sensors are individually located at the paper infeed to identify the feeding errors and lock the paper. The paper-pressing mechanism is equipped with a roller which effectively reduces possible scratches on the back of the paper. With the vacuum suction and the floating paper-feeding technology, the operator can easily adjust the lateral orientation of the paper by simply adjusting the air pressure. The location of the air duct and the hole positions on the air guide plate are precisely engineered to minimize scratches on the paper.
Operator peace of mind
* After viewing the printing proof, the operator can adjust the ink at any time online through the central ink console. Thousands of ink settings can be stored in the ink console and replicated easily. The high-resolution touch screen allows the operator to adjust the process effortlessly.

Technical Parameter:

Model	JD41050
Machine speed	12,000sph
Max. Sheet Size	740*1050mm.
Min. Sheet Size	360*520mm.
Sheet Thickness	0.06-0.7mm.
Max. Image Area	720*1020mm.
Plate Size	787*1050*0.3mm.
Blanket Size	910*1060*1.95mm.
Max. Feeder pile height	1180mm
Max. Delivery pile height	1080mm
Machine Dimension	9560*3450*2150mm
Total Power of Motors	60kW
Machine Weight (gross)	36000kg
