Basic Info.
Voltage
1/2/3 Phase, 220V/380V, 50/60 Hz
Max.Width of Material
480mm
Transport Package
Wooden Box
Specification
2500*820*960mm (LxWxH)
Production Capacity
30 Sets Per Month
Product Description

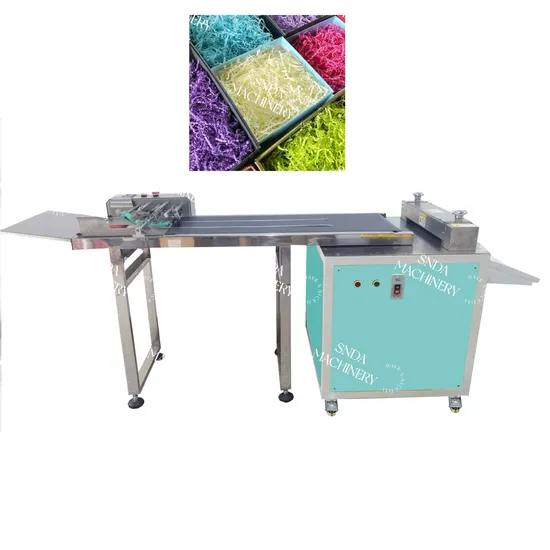

The Gift filling Paper shredder,Crinkle Paper Shredding machine is stable and reliable, and the production rate is high! It's an ideal equipment for all kinds of enterprises processing!
Application
The product crinkle paper made by our Crinkle Paper Shredding machine,or we called crinkle paper shredder,these finished paper is a new type of environmentally-friendly decorative shock-proof material that we have newly developed in recent years. It is widely used as filling paper for gift boxes, glass bottles, wine packaging filling, electronic product filling, ceramic,glass products and various fragile items packaging filling to prevent shocks. It is a very popular method of candy packaging at present.
Shredded paper specifications:Usually is 3MM (W)
Color: kraft or mixed also possible
The texture is very light, the fluffy is very good, the roots are distinct and three-dimensional, and it can be installed in any size box. The effect is more beautiful when matched with our special illusion paper.
Machine features
1. The paper feeding in roll.
2. Machine support automatic cutting and shredding.
3. Machine can integrate conveyor inline
Technical parameters
| Machine model | SD-PS500 |
| Max. feeding material width | 480mm |
| Finished material width | Usually 3mm (if 2mm or 4mm or 6mm,need to change module) |
| Machine Power | 3.2KW |
| Paper Thickness: | 14-350gsm |
| Machine working speed | 25m/min(Adjustable) |
| Paper sheet feeding height | Max. 100mm |
| Machine size | 2500*820*960mm (LxWxH) |
| Wooden box size | 810*900*1100mm (LxWxH) and conveyor 1600*780*565mm (LxWxH) |
| Power supply | 380V 3 Phase,50hz or as customer requirement |
>>
